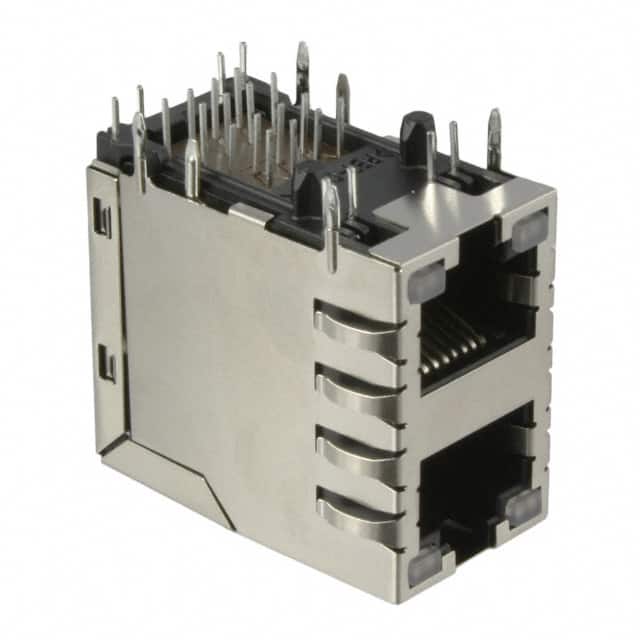

6368011-1 TE Connectivity 6368011-1 is a shielded RJ45 modular jack with 8P8C configuration, right angle orientation, and through hole mounting. It features two ports with dual green LEDs and a board guide.
Mfr Part #:

6368011-1

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 6368011-1 is a shielded RJ45 modular jack with 8P8C configuration, right angle orientation, and through hole mounting. It features two ports with dual green LEDs and a board guide.
✓ Total Stock: 21 pcs
$ Price Range: $24.79 - $36.80

6368011-1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6368011-1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
Housing Material
LED Color
Lead Style
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
Termination Style
View Similar Products (0)

6368011-1 Description

Short technical summary and product information.

The TE Connectivity 6368011-1 is a modular jack designed for Ethernet and networking applications. It features an 8P8C (RJ45) configuration with two ports, right angle orientation, and through hole solder termination. The connector is fully shielded with an EMI finger for enhanced electromagnetic interference protection. The housing is made of black PBT polyester with UL 94V-0 flammability rating. Contacts are phosphor bronze with gold plating in the mating area and matte tin in solder areas over nickel underplate. Integrated dual green light emitting diodes (LEDs) provide visual status indication, with a suggested operating current of 20 mA per LED. The connector is rated for Cat5 performance and conforms to FCC Part 68 Subpart F. Note that this modular jack is not compatible with IR reflow soldering processes; wave soldering is recommended. The PCB should use a 3.25 mm drill bit for the mounting holes.

6368011-1 Quick Information

Product Type: Modular Connector Jack
Canonical Name: TE Connectivity 6368011-1 Modular Jack, RJ45, 8P8C, Right Angle, Shielded, Through Hole, 2 Ports, Dual Green LEDs
Subcategory: Modular Connector Jacks

6368011-1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 - Unlimited
REACH Status: Non-Compliant

6368011-1 Estimated Pricing

Qty Low High
1+ $36.80 $36.80
10+ $31.28 $31.28
45+ $28.13 $28.13
90+ $26.79 $26.79
135+ $26.03 $26.03
270+ $24.79 $24.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

6368011-1 Features

  • 8P8C RJ45 modular jack with 2 ports.
  • Right angle orientation with through hole mounting.
  • Shielded with EMI fingers for noise protection.
  • Dual green LED indicators.
  • Gold-plated phosphor bronze contacts.

6368011-1 Applications

  • Ideal for Ethernet networking equipment.
  • Used in patch panels and network switches.
  • Suitable for industrial control interfaces.
  • Common in telecommunication devices.

6368011-1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the connector type and number of positions?

The connector type is Jack with 8p8c (RJ45, Ethernet) positions.

What is the mounting type and orientation?

Mounting type is Through Hole with 90° Angle (Right) orientation.

Is the connector shielded?

Yes, it is shielded with EMI finger.

What are the LED colors and operating current?

The LEDs are Green - Green (dual green) with a suggested operating current of 20 mA.

What is the contact finish and material?

Contact finish is Gold over phosphor bronze material.

Does the connector comply with FCC regulations?

Yes, the jack cavity conforms to FCC Rules and Regulations, Part 68 Subpart F.

What is the recommended PCB hole diameter?

The recommended PCB hole diameter is 3.25 mm (use No. 30 drill bit).
