| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,358 pcs
|
24358 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Belly-to-Belly Support | |
| Connector Style | |
| Connector Type | |
| Data Rate (Typical) | |
| Features | |
| Lead Style | |
| Lightpipes Included | |
| Mating Dust Cap | |
| Mounting Type | |
| Number of Ports | |
| Orientation | |
| PCB Termination | |
| Port Configuration | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style (Cage) |

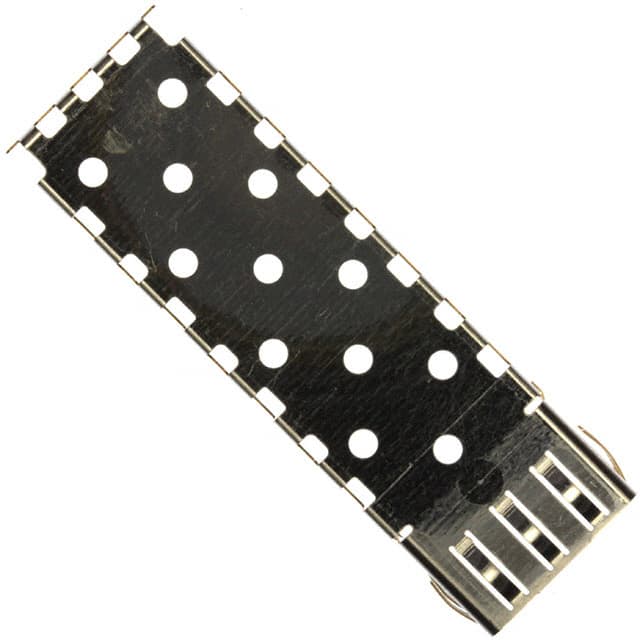

The TE Connectivity 6367035-1 is a single-port SFP (Small Form-factor Pluggable) upper cage assembly designed for use with a 20-position pluggable transceiver connector. It features a snap fit termination for panel attachment and through hole PCB termination via solder. The cage supports belly-to-belly applications and is EMI shielded for enhanced signal integrity.
This cage is part of TE's comprehensive SFP product line, supporting data rates up to 4 Gb/s. It is suitable for networking equipment such as switches, routers, servers, and storage controllers. The 1x1 port configuration allows for compact designs, and the top orientation facilitates easy access.
The 6367035-1 does not include integrated lightpipes. A mating dust cap (part number 1367147-x) is available for port protection. The cage is RoHS3 compliant and has an MSL of 1 (unlimited).
The connector type is SFP (Small Form-factor Pluggable).
The cage uses through hole mounting with solder PCB termination and snap fit panel attachment.
It is a single-port cage with a 1x1 port configuration.
No, lightpipes are not included.
The typical data rate is 4 Gb/s.
Yes, it features EMI shielding.
The mating dust cap is part number 1367147-x.
