| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
68 pcs
|
68 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Base Material | |
| Contact Finish | |
| Contact Material | |
| Contact Mating Area Plating Material | |
| ELV | |
| Features | |
| Height | |
| Housing Color | |
| Housing Material | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| PCB Thickness Recommended | |
| Packaging Method | |
| Packaging Quantity | |
| Ratings | |
| Shielding | |
| Solder Tail Contact Plating Material | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| UL | |
| UL Flammability Rating | |
| reel_diameter |

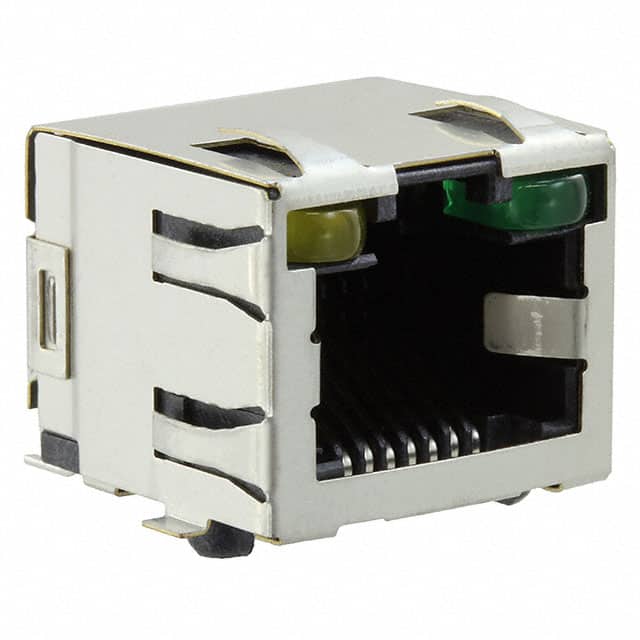

The TE Connectivity 6339191-1 is a single-port, shielded RJ45 modular jack designed for surface mount assembly. It accommodates 8 positions (8p8c) and is terminated via solder tails with tin-over-nickel plating. The right-angle (90°) orientation and upward tab direction make it suitable for edge-mounted PCB applications.
The jack includes integrated green (top left) and orange (top right) LEDs for link/activity status indication. The housing is black liquid crystal polymer (LCP) with a UL 94V-0 flammability rating. Shielding includes an EMI finger for enhanced electromagnetic interference protection.
Rated for Cat5 performance, this connector is suitable for Ethernet networking equipment. The design includes a board guide and solder retention features for reliable PCB mounting. Contact base material is phosphor bronze with gold plating on the mating area. The recommended PCB thickness is 1.57 mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.81 | $5.81 |
| 10+ | $4.94 | $4.94 |
| 25+ | $4.63 | $4.63 |
| 50+ | $4.41 | $4.41 |
| 100+ | $4.12 | $4.12 |
| 200+ | $3.92 | $3.92 |
| 400+ | $3.81 | $3.81 |
| 1,000+ | $3.71 | $3.71 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Part number 6339191-1, manufactured by TE Connectivity (TE internal number 2-6339191-1).
8 positions (8p8c) and 1 port.
Yes, it is shielded and includes an EMI finger.
Surface mount, 90° angle (right). Tab direction is up.
Green (top left) and orange (top right).
Cat5.
Black LCP housing, UL 94V-0 rated.
