| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
410 pcs
|
410 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
269 pcs
|
269 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Current Rating | |
| Features | |
| Gender | |
| Housing Material | |
| LED Color | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Orientation | |
| Ratings | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| UL Flammability Rating |

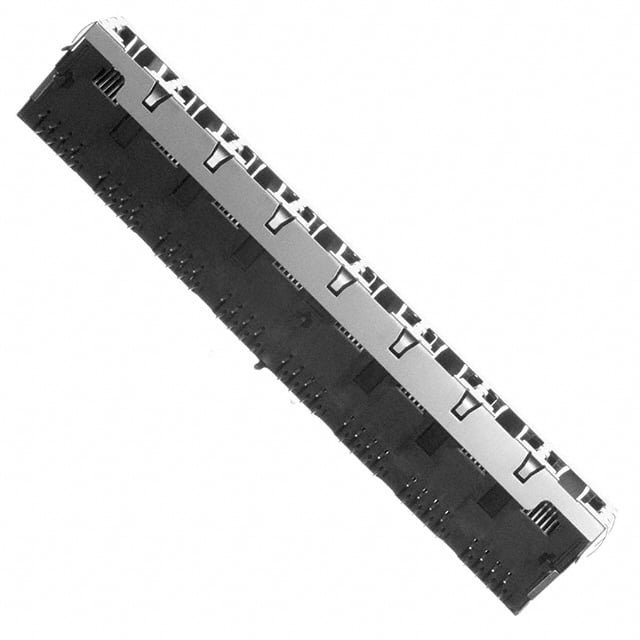

The TE Connectivity 6339169-3 is an 8 port RJ45 modular jack designed for high density networking applications. It features a ganged 1x8 port matrix configuration with a standard latch down orientation. The connector is shielded with an EMI finger and includes 3 PCB ground tabs for effective grounding.
Electrical performance is rated for Cat5 applications with a current rating of 1 A per contact. Contacts are made of phosphor bronze with gold plating in the mating area and tin plating on the PCB termination area. The housing is constructed from PCT polyester with a UL 94V-0 flammability rating.
Mechanically, the jack is through hole mounted with a right angle orientation and solder termination. It has 8 positions with 8 loaded contacts in a single row on 1.02 mm centerline pitch. The operating temperature range is -40 to 60 °C.
The connector type is a Jack (female) RJ45 modular connector.
It has 8 ports in a 1x8 ganged configuration.
It is rated for Cat5 performance.
Yes, it is shielded with an EMI finger.
It is through hole mounted with a right angle orientation.
The current rating is 1 A per contact.
The operating temperature range is -40 to 60 °C.
