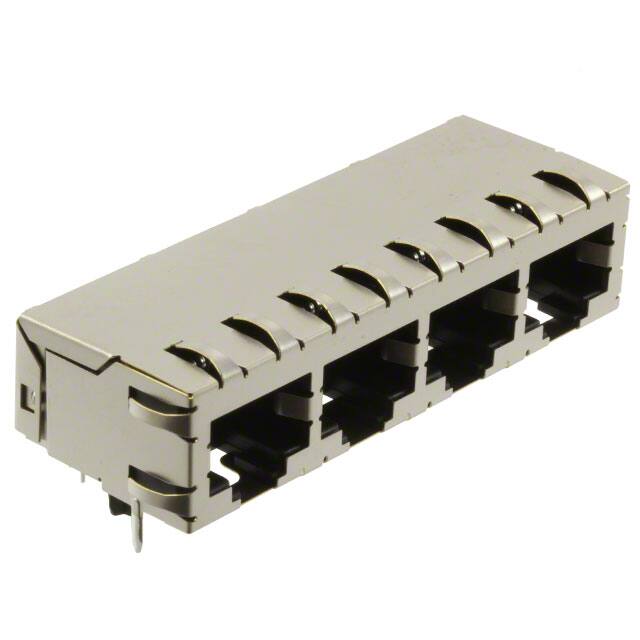

6339167-2 TE Connectivity 6339167-2 is a 4-port, 8P8C (RJ45) shielded right angle modular jack with through-hole mounting and solder termination. It features gold-plated phosphor bronze contacts, a PCT polyester housing (UL94V-0), and is Cat5 rated for Ethernet applications.
Mfr Part #:

6339167-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 6339167-2 is a 4-port, 8P8C (RJ45) shielded right angle modular jack with through-hole mounting and solder termination. It features gold-plated phosphor bronze contacts, a PCT polyester housing (UL94V-0), and is Cat5 rated for Ethernet applications.
✓ Total Stock: 53 pcs

6339167-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
53 pcs
On Request
53 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

6339167-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Features
Housing Material
LED Color
Lead Style
Mounting Type
Number of Contacts
Number of Ports
Number of Positions
Number of Rows
Orientation
Ratings
Shielding
Tab Direction
Termination
View Similar Products (0)

6339167-2 Description

Short technical summary and product information.

The TE Connectivity 6339167-2 is a 4-port, 8P8C (RJ45) modular jack designed for Ethernet applications. It features a right angle orientation and through-hole mounting with solder termination. The connector is shielded with an EMI finger for enhanced electromagnetic compatibility. The housing is made of PCT polyester with a UL94V-0 flammability rating, and the contacts are phosphor bronze with a gold plating of 0.0013 mm minimum thickness in the contact area, over a nickel underplate. The solder tails are tin-plated. The jack is rated Cat5 and complies with FCC Part 68 Subpart F. It includes a board guide feature for easy alignment during assembly. The overall length is 53.34 mm, with four PCB holes/tabs for mounting. Recommended applications include Fast Ethernet, 10 Base-T, and 10/100 Base-T networks.

6339167-2 Quick Information

Product Type: Modular Connector Jack
Canonical Name: 4-Port, 8P8C (RJ45) Shielded Right Angle Modular Jack, Through Hole, Cat5
Subcategory: RJ45

6339167-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

6339167-2 Features

  • 4-port 8P8C (RJ45) modular jack.
  • Shielded with EMI finger for EMC.
  • Right angle through-hole mounting.
  • Gold-plated phosphor bronze contacts.
  • Cat5 rated for Ethernet applications.

6339167-2 Applications

  • Use in Fast Ethernet 10/100 Base-T networks.
  • Suitable for 10 Base-T applications.
  • Ideal for multi-port networking equipment.
  • Used in shielded Ethernet modules.

6339167-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

8 positions (8P8C, RJ45, Ethernet).

What is the mounting type?

Through-hole mounting.

How many ports does this jack have?

4 ports.

Is the connector shielded?

Yes, shielded with EMI finger.

What is the orientation?

Right angle (90°).

What is the flammability rating of the housing?

UL94V-0.

What Ethernet standards does it support?

Cat5, Fast Ethernet, 10 Base-T, and 10/100 Base-T.
