| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

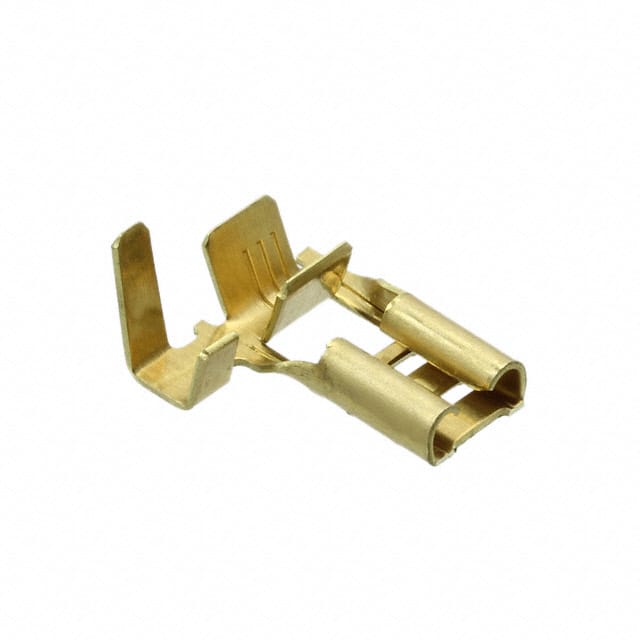

The TE Connectivity 63316-1 is a non-insulated female quick connect receptacle designed for use with 0.187" (4.75mm) wide male tabs having a thickness of 0.032" (0.81mm). This flag-style terminal accepts 14-18 AWG wire and uses a crimp termination for reliable mechanical and electrical connections. The contact is made of brass, ensuring good conductivity and corrosion resistance. The mounting type is free hanging (in-line) with a right-angle orientation, making it suitable for tight spaces and wire-to-wire or wire-to-board applications. As a non-insulated terminal, it requires additional insulation or heat shrink if needed. This part is commonly used in automotive, appliance, and industrial wiring harnesses where quick disconnect capability is required.
| Qty | Low | High |
|---|---|---|
| 90,000+ | $0.08 | $0.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free hanging (in-line) with a right-angle orientation.
14-18 AWG.
0.187" (4.75mm).
No, it is non-insulated.
Crimp termination.
Brass.
0.032" (0.81mm).
