| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Barrel Type | |
| Comment | |
| Connection Capacity | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| Features | |
| Gender | |
| Halogen Free | |
| Insertion Force | |
| Insulation | |
| Insulation Option | |
| Mating Retention Type | |
| Mounting Type | |
| Operating Temperature Range | |
| Overall Length | |
| Packaging Method | |
| Packaging Quantity | |
| Sealable | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Wire Gauge | |
| Wire Insulation Support | |
| Wire Stop | |
| Wire size | |
| Wire/Cable Type |

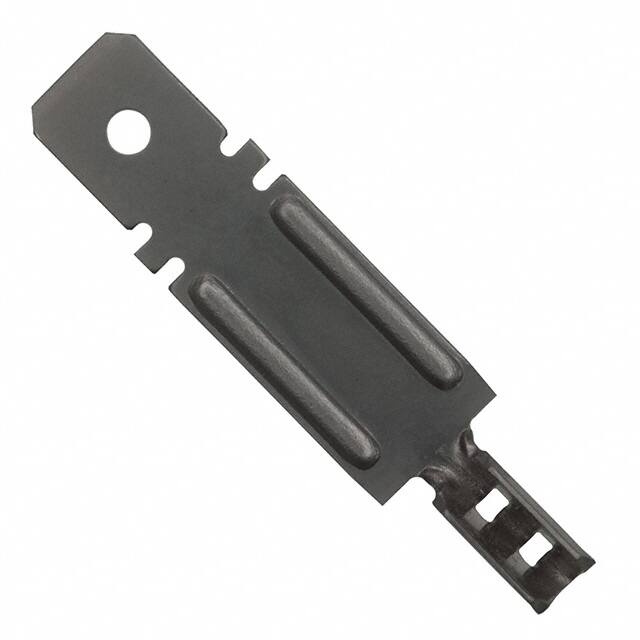

The TE Connectivity 63300-1 is a male quick disconnect tab terminal belonging to the FASTON 312 series. It is designed for free-hanging, in-line applications and terminates wires in the 15-22 AWG range (0.32 – 1.65 mm²) using an F-crimp method on an open barrel. The contact material is steel with a nickel finish, providing reliable electrical conductivity and corrosion resistance.
This terminal has a mating tab width of 7.92 mm (0.312 inches) and a mating tab thickness of 0.81 mm (0.032 inches), making it compatible with standard 0.312-inch quick disconnect receptacles. It features a hole-type mating retention and does not include wire insulation support. The part is rated for an operating temperature range of -40°C to 250°C and is sealable.
The 63300-1 is supplied on a strip/reel with a packaging quantity of 3000 pieces per reel. It is compliant with EU RoHS, EU ELV, China RoHS, and EU REACH regulations. This component is suitable for a variety of wire-to-wire and wire-to-board connections that require a reliable, quick-connect interface.
| Qty | Low | High |
|---|---|---|
| 3,000+ | $0.16 | $0.16 |
| 6,000+ | $0.15 | $0.15 |
| 12,000+ | $0.14 | $0.14 |
| 45,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The terminal accepts 15-22 AWG wire, which corresponds to a wire size of 0.32 – 1.65 mm².
The mating tab width is 7.92 mm (0.312 inches) and the mating tab thickness is 0.81 mm (0.032 inches).
It operates from -40 °C to 250 °C.
No, it is a non-insulated terminal.
It is packaged on a strip/reel with 3000 pieces per reel.
The contact base material is steel and the plating is nickel.
