| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request | |
|
21 pcs
|
21 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Base Resonator | |
| Current | |
| Current - Supply | |
| Frequency | |
| Frequency Stability | |
| Function | |
| Height | |
| Height - Seated (Max) | |
| Industrial Grade | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Output | |
| Package / Case | |
| SVHC Present | |
| Size / Dimension | |
| Storage Temperature | |
| Supply Voltage | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

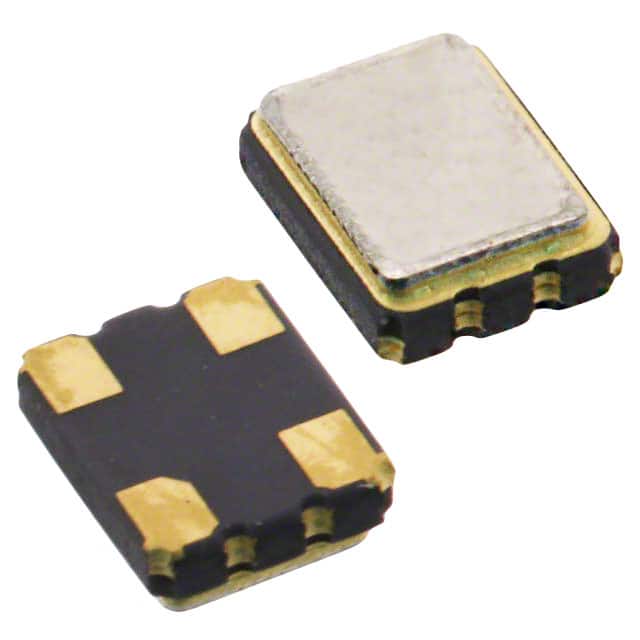

The CTS-Frequency Controls 632L3I050M00000 is a 50 MHz clock oscillator from the Model 632 series. It uses a crystal base resonator and provides HCMOS output logic. The oscillator features an enable/disable function for power management, operates at a nominal supply voltage of 3.3V, and draws a typical supply current of 15mA. It offers ±50ppm frequency stability over the full operating temperature range of -40°C to 85°C.
The device is packaged in a compact 4-SMD, no lead ceramic package with dimensions of 3.20mm x 2.50mm x 1.20mm, making it suitable for space-constrained surface-mount designs. Common applications include Internet of Things (IoT) devices, microcontrollers, FPGAs, wireless communication, networking equipment, data communications, and Ethernet/GbE/SyncE systems.
This oscillator is designed for reliable performance in industrial and commercial environments. Its low jitter and stable frequency output make it a cost-effective solution for a wide range of timing applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.46 | $1.46 |
| 10+ | $1.26 | $1.26 |
| 25+ | $1.20 | $1.20 |
| 100+ | $1.09 | $1.09 |
| 250+ | $1.00 | $1.00 |
| 500+ | $0.98 | $0.98 |
| 1,000+ | $0.94 | $0.94 |
| 3,000+ | $0.88 | $0.88 |
| 6,000+ | $0.83 | $0.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3V nominal.
4-SMD, No Lead package with dimensions 3.20mm x 2.50mm x 1.20mm.
-40°C to 85°C.
HCMOS.
±50ppm maximum.
50 MHz.
Yes, it features an Enable/Disable function.
