| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,000 pcs
|
16000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Lead Style | |
| Mounting Type | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

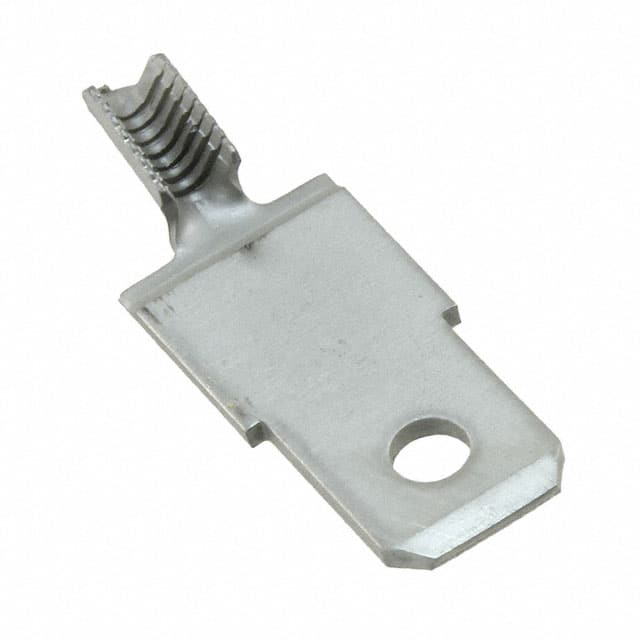

The TE Connectivity 63165-2 is a male quick connect terminal tab, part of the non-insulated quick disconnect connector family. It features a 0.250" (6.35mm) tab width and 0.032" (0.81mm) tab thickness, suitable for standard mating receptacles. The terminal is designed for crimp termination to 19-23 AWG wire. The contact is made of brass with a tin finish, providing good conductivity and corrosion resistance. The terminal is angled 15° for ease of insertion in tight spaces. It is designed for free hanging (in-line) mounting, making it ideal for harness assemblies. This terminal is commonly used in applications requiring quick connect/disconnect connections, such as power distribution, control panels, and automotive wiring.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.32 | $0.32 |
| 10+ | $0.28 | $0.28 |
| 25+ | $0.26 | $0.26 |
| 50+ | $0.25 | $0.25 |
| 100+ | $0.23 | $0.23 |
| 250+ | $0.22 | $0.22 |
| 500+ | $0.21 | $0.21 |
| 1,000+ | $0.20 | $0.20 |
| 4,000+ | $0.17 | $0.17 |
| 8,000+ | $0.16 | $0.16 |
| 12,000+ | $0.16 | $0.16 |
| 20,000+ | $0.15 | $0.15 |
| 28,000+ | $0.15 | $0.15 |
| 40,000+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Free Hanging (In-Line).
0.250" (6.35mm).
19-23 AWG.
Crimp.
No, it is non-insulated.
Brass with tin finish.
15° angled.
