| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Angle of Throw | |
| Behind Panel | |
| Built in Switch | |
| Detent | |
| Electrical Rating | |
| Encoder Type | |
| Mounting Type | |
| Number of Decks | |
| Operating Temperature (Minimum/Maximum) | |
| Orientation | |
| Output Type | |
| Pulses per Revolution | |
| Pushbutton | |
| Pushbutton Life | |
| Resolution | |
| Rotational Life | |
| Rotational Life (Cycles Min) | |
| Rotational Positions | |
| Rotational Torque | |
| Shaft Diameter | |
| Shaft Type | |
| Supply Voltage | |
| Termination Style | |
| Voltage |

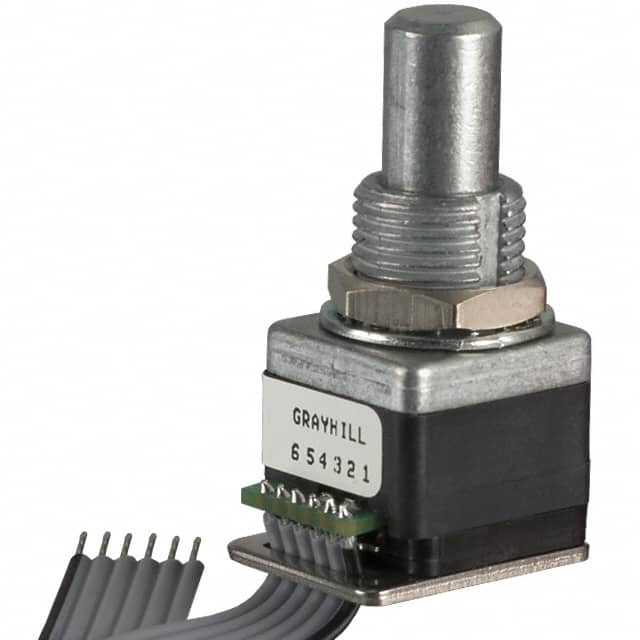

The Grayhill 62D22-02-060S is a premium haptic rotary encoder designed for rugged durability and precise operation. Utilizing optical coupling technology, it achieves over one million rotational cycles, ensuring consistent performance even in harsh environments. This encoder operates at a 5V supply voltage and provides 16 pulses per revolution (PPR) with a nominal rotational torque of 3.5 oz-in.
Featuring a compact ½-inch package, the 62D22-02-060S is suitable for panel mounting and comes with stripped cable leads for termination. It includes an optional integrated pushbutton for scroll-and-click functionality. The encoder is rated for operation between -40°C and +85°C, making it ideal for demanding applications.
Key specifications include an angle of throw of 22.5 degrees for Deck A, a shaft diameter of 0.25 inches, and a behind-panel depth of 0.525 inches. The device has an electrical rating of 10 mA and a pushbutton life of 3 million cycles. Its durable construction and wide operating temperature range make it suitable for medical devices, military equipment, industrial controls, and vehicle systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 5 VDC.
The encoder provides 16 pulses per revolution.
The rotational life is rated for a minimum of 1,000,000 cycles.
The operating temperature range is from -40 C to 85 C.
Yes, it has a built-in switch.
The shaft diameter for Deck A is 0.25 inches.
