| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Features | |
| Flammability | |
| Flammability Rating | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Level, Class | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Style | |
| Termination | |
| Termination Style | |
| Withstanding Voltage |

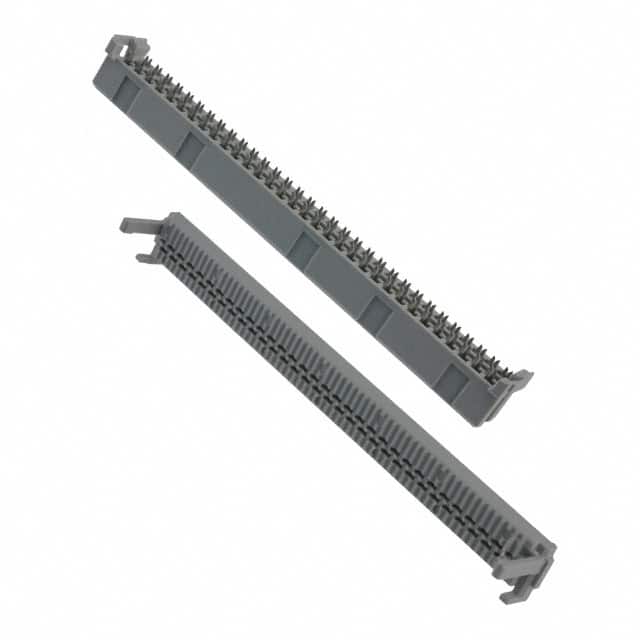

The 3M 62C64-1100EC is a DIN 41612 Type C receptacle connector with 96 positions (64 loaded) arranged in 3 rows. It features female gold-plated contacts on a 2.54mm pitch and is designed for free hanging (in-line) mounting with IDC termination.
Electrical specifications include a current rating of 1A, insulation resistance greater than 1 × 10⁹ Ω at 500 VDC, and a withstanding voltage of 1000 Vrms at sea level. The operating temperature range spans -55°C to +125°C.
The housing is molded from glass filled polyester (PBT) with a UL 94V-0 flammability rating. Contacts are copper alloy with a 0.76µm gold finish. The connector is RoHS3 compliant and has MSL 1 unlimited moisture sensitivity.
96 total positions, 64 positions loaded.
2.54mm (0.100").
1 A.
Free hanging (in-line).
-55°C to +125°C.
