| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Halogen Free | |
| Insulation Resistance | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Mating Cycles | |
| Military Grade | |
| Mounting Feature | |
| Mounting Method | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Orientation | |
| Recommended PCB Thickness | |
| SVHC Present | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| USB Specification | |
| Voltage | |
| Withstanding Voltage | |
| Working Voltage |

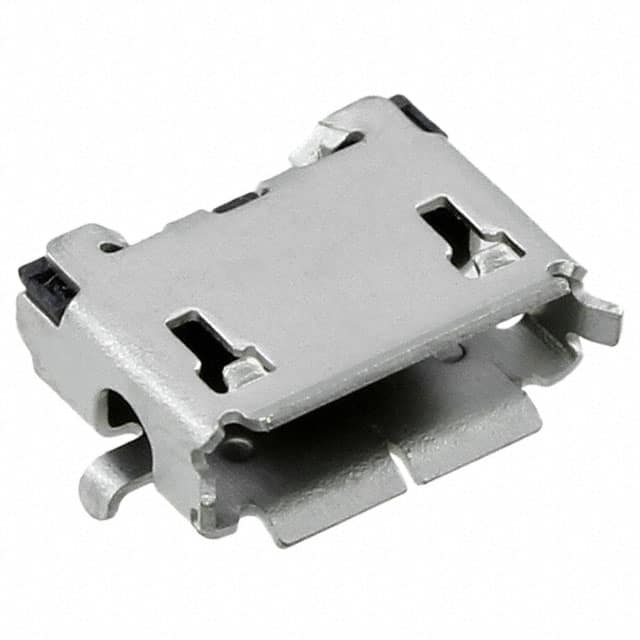

USB 2.0 Micro AB receptacle connector from Würth Elektronik, part of the WR-COM series. This is a surface mount, horizontal orientation receptacle with 5 contacts. The connector is shielded with stainless steel and matte tin plating, providing EMI protection. The contacts are stamped copper alloy with gold plating on the mating side for reliable connections.
Electrical specifications include a current rating of 1.8 A, working voltage of 30 VAC, withstanding voltage of 100 VAC for 1 minute, contact resistance of 30 mΩ max, and insulation resistance of 1000 MΩ min. The insulator is made of LCP with UL94 V-0 flammability rating.
Mechanical features include 10,000 mating cycles, operating temperature range from -40°C to 85°C, and recommended PCB thickness of 1.2 mm. The connector is RoHS compliant and suitable for use in general electronic equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.11 | $2.11 |
| 10+ | $1.93 | $1.93 |
| 50+ | $1.79 | $1.79 |
| 100+ | $1.64 | $1.64 |
| 500+ | $1.43 | $1.43 |
| 1,300+ | $1.43 | $1.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
5 contacts.
1.8 A.
30 VAC.
Surface Mount.
USB 2.0.
-40°C to 85°C.
10,000 cycles.
