| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
242 pcs
|
242 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Insulation Resistance | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Lead Style | |
| Mating Cycles | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Orientation | |
| Pins | |
| Rated Current IR | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| UL Approval | |
| Voltage | |
| Withstanding Voltage | |
| Working Voltage |

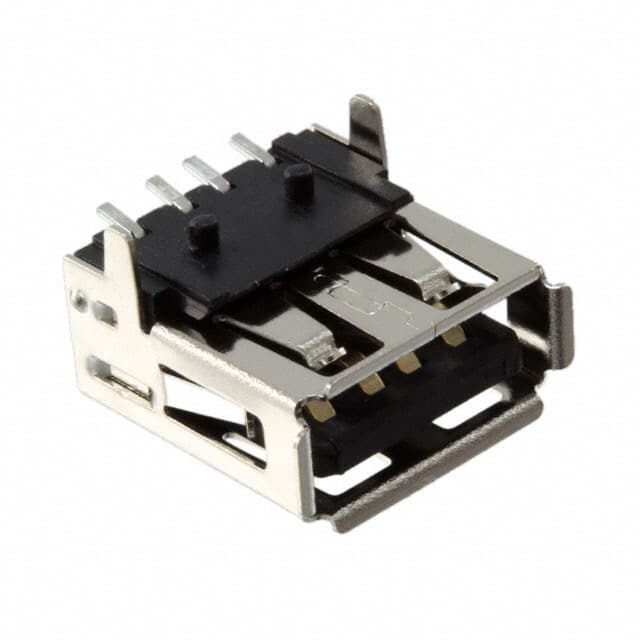

The Würth Elektronik 629104151021 is a USB 2.0 Type-A receptacle connector with 4 contacts. It features a horizontal orientation and surface mount termination with right angle configuration. The connector is shielded for EMI protection and includes a board guide for accurate placement.
Electrical ratings include a current rating of 1.5A and working voltage of 30VAC. Withstanding voltage is 750VAC, contact resistance is 30mΩ maximum, and insulation resistance is 1000MΩ minimum. The connector is rated for 1500 mating cycles, ensuring durability in repeated use.
The insulator is made of LCP with UL94 V-0 flammability rating. Contacts are copper alloy with selective gold plating, and the shield is brass with nickel plating. Operating temperature range is -40°C to 85°C. This connector is RoHS and REACH compliant, with MSL 1 and UL approval E323964.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.60 | $2.60 |
| 50+ | $2.38 | $2.38 |
| 100+ | $2.13 | $2.13 |
| 300+ | $1.87 | $1.87 |
| 600+ | $1.70 | $1.70 |
| 2,400+ | $1.54 | $1.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
USB 2.0 Type-A receptacle, horizontal orientation, surface mount right angle.
4 contacts.
Current rating is 1.5A, working voltage is 30VAC.
Yes, shielded.
-40°C to 85°C.
1500 mating cycles.
Yes, RoHS compliant per 2011/65/EU and 2015/863.
