| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
60 pcs
|
60 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage |

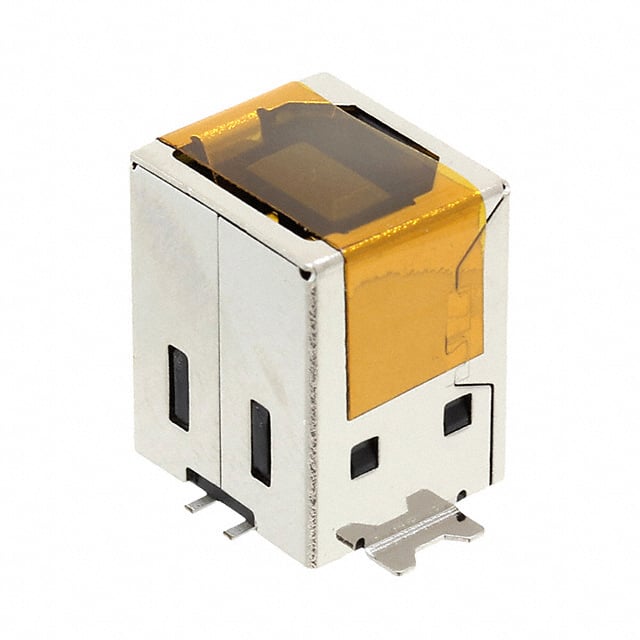

This USB-B (USB TYPE-B) receptacle from Würth Elektronik is designed for USB 2.0 applications. It features 4 contacts in a single port configuration with a vertical surface mount design. The connector is shielded for EMI protection and includes board guide and solder retention features for reliable assembly.
Electrical ratings include a current rating of 1.5A and a voltage rating of 30VAC. The operating temperature range spans -40°C to 105°C, making it suitable for a wide range of environments. The connector is rated for 1500 mating cycles, indicating robust durability.
Termination is via solder, and the mounting type is surface mount with a vertical orientation. The part is RoHS3 compliant and has an MSL of Level 1 (unlimited).
USB-B (USB TYPE-B) receptacle.
4 contacts.
USB 2.0.
Surface mount with vertical orientation.
1.5 A.
30 VAC.
-40°C to 105°C.
