| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,224 pcs
|
3224 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Insulation Resistance | |
| Insulator Flammability Rating | |
| Insulator Material | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Pins | |
| Number of Ports | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Shielding Material | |
| Shielding Plating | |
| Specifications | |
| Tape & Reel | |
| Termination | |
| UL | |
| Voltage | |
| Withstanding Voltage |

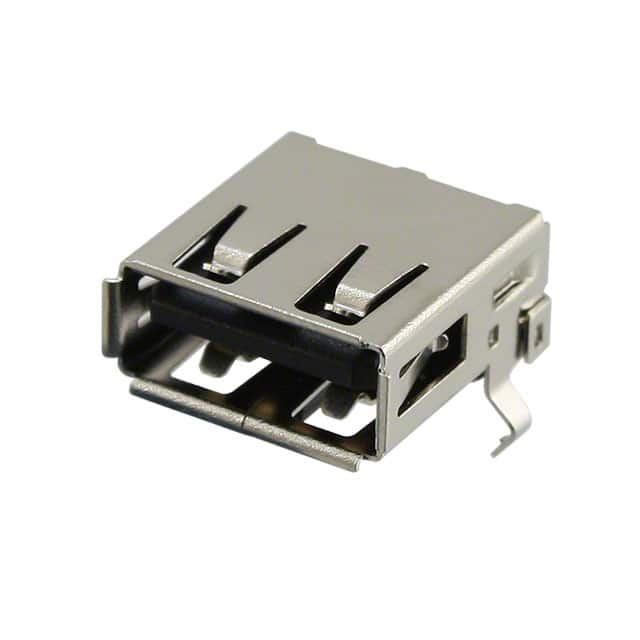

The Würth Elektronik WR-COM 62900416021 is a USB 2.0 Type A receptacle designed for horizontal surface mount assembly. It features 4 contacts with selective gold plating on a copper alloy base, enclosed in a PA6T insulator rated UL94 V-0. The brass shielding is nickel-plated for EMI protection.
Electrical ratings include 1.5A current capacity at 30VAC. Contact resistance is 20 mΩ maximum, insulation resistance is 1000 MΩ minimum, and the connector can withstand 750 VAC. The operating temperature range is -40°C to 105°C.
The connector includes board lock features for secure PCB retention during soldering. It is rated for 1500 mating cycles. The component is RoHS3 compliant and REACH conforming.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.51 | $2.51 |
| 10+ | $2.47 | $2.47 |
| 50+ | $2.29 | $2.29 |
| 100+ | $2.12 | $2.12 |
| 500+ | $1.94 | $1.94 |
| 1,000+ | $1.76 | $1.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.5 A
30 VAC
Surface mount, right angle, horizontal orientation
Yes, it is shielded with a nickel-plated brass shell.
-40°C to 105°C
1500 mating cycles
Yes, RoHS3 compliant.
