| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Style | |
| Termination Style |

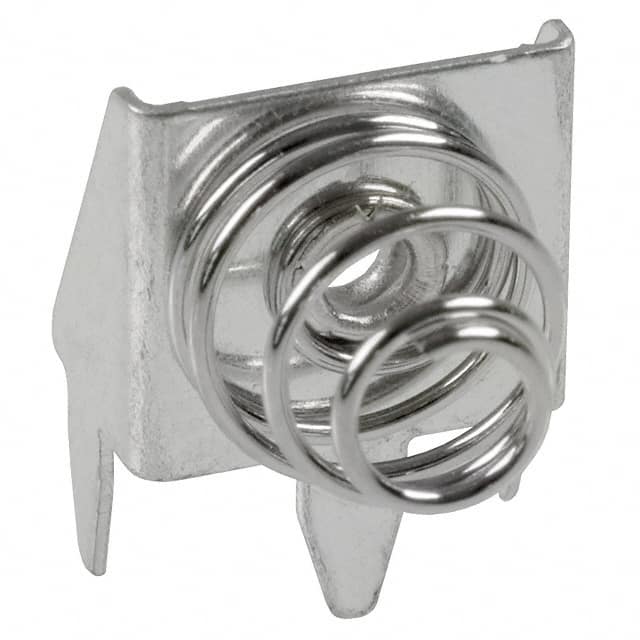

The Keystone Electronics 629 is a contact spring (coil style) battery clip designed for through hole PCB mounting. It terminates with PC Pins for secure soldered connections.
The contact accommodates multiple battery cell sizes and stands 9.64mm above the board surface. Its spring tension design ensures reliable contact with the battery terminal while withstanding shock and vibration.
This component is commonly used in battery-powered devices requiring a compact, low-profile contact solution. The through hole mounting provides mechanical strength suitable for applications where the battery may be replaced or the device experiences movement.
The part is marked as RoHS3 compliant, REACH unaffected, and has MSL level 1 (unlimited floor life). These compliance designations are unverified and should be confirmed from the manufacturer.
PC Pin.
9.64mm (0.380 inches).
Multiple cell sizes.
PCB, Through Hole.
The part is marked as RoHS3 compliant, but this is unverified (low confidence).
