| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Back Shell Style | |
| Cable Opening | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Size | |
| Contact Style | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Grommet Code | |
| Industrial Grade | |
| Ingress Protection | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Orientation | |
| Primary Material | |
| Shell Material | |
| Shielding | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

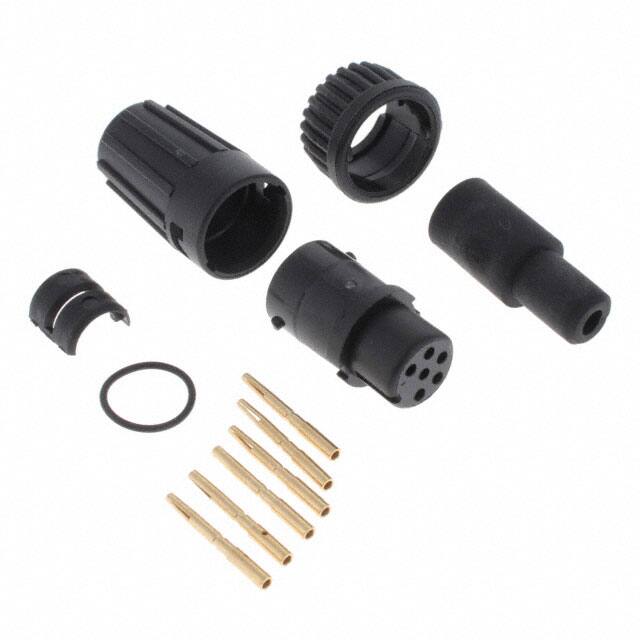

The Conxall/Switchcraft 6280-6SG-513 is a Mini-Con-X field installable circular connector plug designed for cable end applications. It features 6 female socket contacts with #20 contact size, gold over nickel plating, and solder cup termination (as indicated by the 82 contact style code). The connector housing is made of polyamide (nylon) plastic, black in color, with a weathertight design that provides ingress protection. It utilizes a bayonet lock fastening system for secure mating and is keyed for proper orientation. The connector is unshielded and includes a backshell. The cable opening accommodates wire diameters from 0.130 to 0.150 inches (3.30 to 3.81 mm) using grommet code 13. It is rated for 600V and has an operating temperature range of -40°C to 115°C. The current rating varies by wire gauge. This connector is suitable for industrial and commercial applications requiring reliable, weathertight connections.
| Qty | Low | High |
|---|---|---|
| 100+ | $10.19 | $10.19 |
| 200+ | $9.43 | $9.43 |
| 500+ | $9.10 | $9.10 |
| 1,000+ | $8.66 | $8.66 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions.
The current rating varies by wire gauge; consult the datasheet for specific values.
600V.
Free hanging (in-line) mounting.
-40°C to 115°C.
Weathertight design.
Gold over nickel.
