| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| China RoHS | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| EU ELV | |
| Fastening Type | |
| Frequency | |
| Halogen Free | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Solder Process Capability | |
| Tape & Reel |

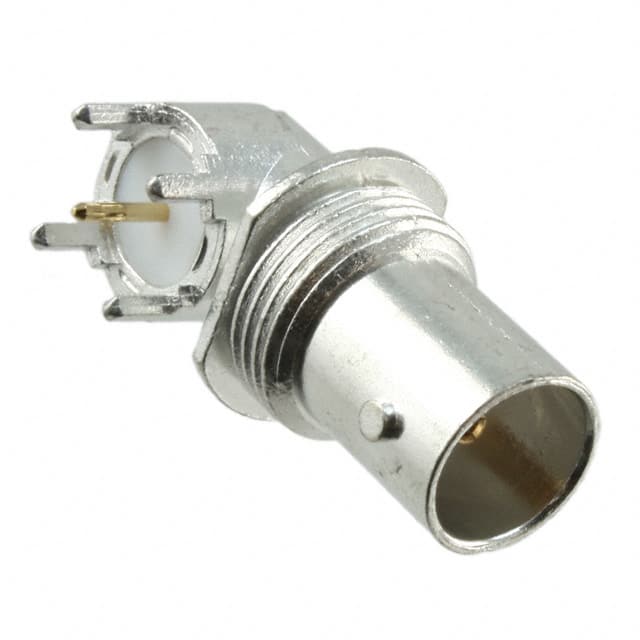

The TE Connectivity 6274425-2 is a 75 Ohm BNC jack connector designed for right angle PCB mounting. It features a female socket contact with a bayonet lock fastening type for secure connections. The connector is panel mountable with a bulkhead front side nut mounting feature.
This connector supports frequencies up to 4 GHz and uses a beryllium copper center contact. Both the contact and shield are terminated via solder, making it suitable for wave soldering processes up to 265°C. The housing is silver in color.
The 6274425-2 is RoHS compliant with exemptions (6(c) - Pb-Alloy in Copper) and is halogen free (Br and Cl < 900 ppm, BFR/CFR/PVC free). It contains SVHC above threshold (Pb 0.6%) per REACH. The part is pending obsolescence per the manufacturer.
The impedance is 75 Ohms.
The maximum frequency is 4 GHz.
It uses panel mount, through hole, right angle mounting with a bulkhead front side nut.
The fastening type is bayonet lock.
The center contact material is beryllium copper.
Yes, it is RoHS compliant with exemptions (6(c) - Pb-Alloy in Copper).
It is wave solder capable to 265°C.
