| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24,000 pcs
|
24000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Contact Finish | |
| Contact Material | |
| Contact Side | |
| FFC, FCB Thickness | |
| FFC/FPC Thickness | |
| Features | |
| Flammability Rating | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Lead Spacing | |
| Locking Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

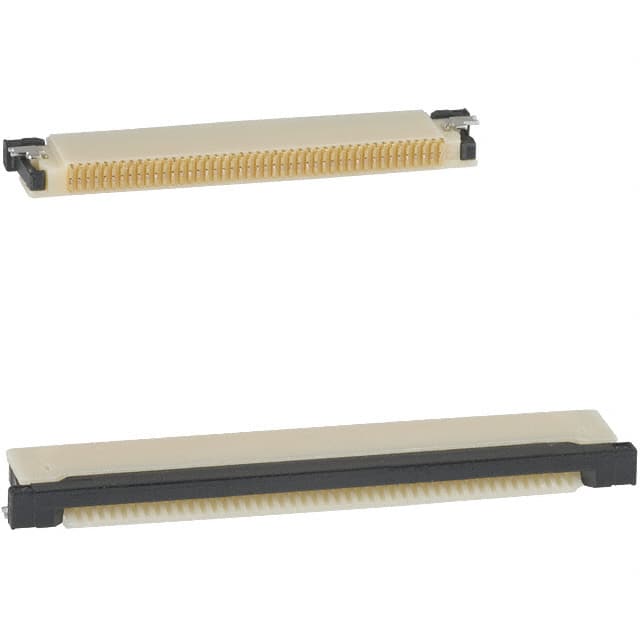

The Amphenol ICC 62684-451100ALF is a 45-position FPC connector with a 0.50mm pitch, designed for surface mount right-angle mounting. It features a zero insertion force (ZIF) mechanism with a slide lock actuator, ensuring reliable connection without damaging the flexible circuit. The connector accepts FPC cables with a thickness of 0.30mm or 0.33mm, and supports both straight and tapered cable end types.
Constructed with a polyamide (PA9T) glass-filled housing and a thermoplastic glass-filled actuator, the connector offers robust mechanical performance. The contacts are made of phosphor bronze with a gold finish, providing excellent conductivity and corrosion resistance. The operating temperature range spans from -55°C to 85°C, making it suitable for a wide variety of environments.
This connector is rated for 50V and is RoHS3 compliant, with a flammability rating of UL94 V-0. Its compact 2.00mm height above board makes it ideal for space-constrained designs in consumer electronics, industrial controls, and automotive applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.33 | $1.33 |
| 10+ | $1.13 | $1.13 |
| 25+ | $1.01 | $1.01 |
| 100+ | $0.96 | $0.96 |
| 250+ | $0.90 | $0.90 |
| 500+ | $0.85 | $0.85 |
| 1,000+ | $0.80 | $0.80 |
| 2,000+ | $0.75 | $0.75 |
| 4,000+ | $0.74 | $0.74 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
45 positions.
0.50mm.
50V.
Surface mount, right angle.
Yes, it features zero insertion force (ZIF) with a slide lock.
-55°C to 85°C.
Gold.
