| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
72 pcs
|
72 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Material | |
| Cable End Type | |
| Connector | |
| Connector Style | |
| Contact Finish | |
| Contact Material | |
| FFC, FCB Thickness | |
| Features | |
| Flat Flex Type | |
| Height Above Board | |
| Housing Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

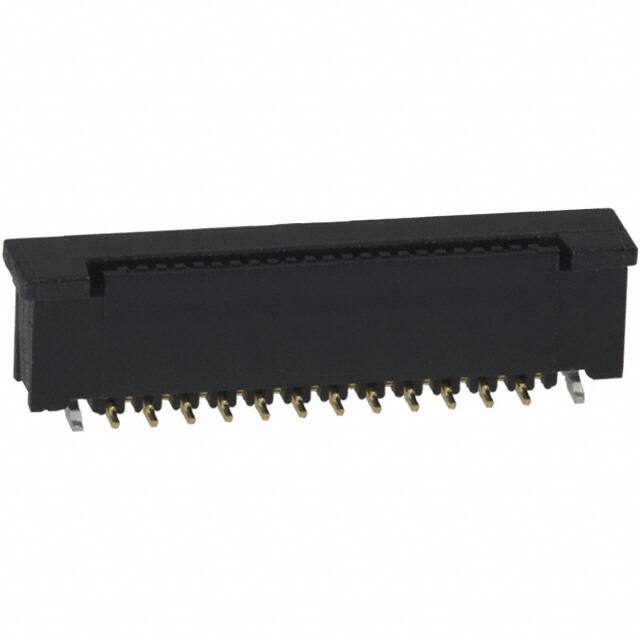

The Amphenol ICC 62674-241121ALF is a 24-position FFC/FPC connector with a 0.5mm pitch, designed for surface mount applications. It features a vertical, one-sided contact style with a Zero Insertion Force (ZIF) locking mechanism for easy cable insertion and secure retention.
The connector is rated for 50V DC operation and operates over a temperature range of -55°C to 105°C. Contacts are made of phosphor bronze with gold plating, ensuring low resistance and corrosion resistance. The housing and actuator are constructed from glass-filled plastic with a UL94 V-0 flammability rating.
With a height above board of 4.10mm, this connector is suitable for compact PCB designs. It accepts FFC/FPC cables with a thickness of 0.30mm and supports straight or tapered cable ends. The kinked pin termination provides reliable solder joints.
24 positions.
0.5mm.
50V.
Surface mount.
-55°C to 105°C.
Gold.
UL94 V-0.
