| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
18,000 pcs
|
18000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA Certified | |
| Contact Finish | |
| Contact Material | |
| Crimp Type | |
| ELV | |
| Gender | |
| Insulation | |
| Insulation Diameter | |
| Length | |
| Mounting Type | |
| Packaging Method | |
| Stock Thickness | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| UL Rating | |
| Wire Gauge | |
| Wire Range |

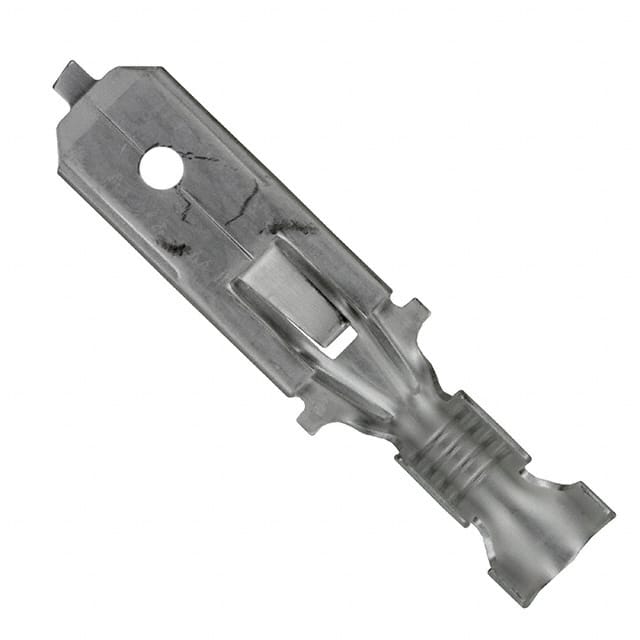

The TE Connectivity 62553-3 is a FASTIN-FASTON .250 series non-insulated male quick connect tab terminal. It is designed for 18 to 22 AWG wire with an insulation diameter range of 2.16-3.18 mm. The tab measures 0.250 inches (6.35 mm) wide by 0.032 inches (0.81 mm) thick, with a tab length of 0.620 inches (15.75 mm).
The terminal uses an F-crimp termination method and has a stock thickness of 0.38 mm. The contact is made of tin-plated brass. This part supports free hanging (in-line) mounting and is suitable for single or multiple circuit housings.
It is UL recognized and CSA certified. The component is always RoHS and ELV compliant per the manufacturer's datasheet. Packaging is in strip form. The 62553-3 is part of the AMP brand product line from TE Connectivity.
| Qty | Low | High |
|---|---|---|
| 9,000+ | $0.13 | $0.13 |
| 27,000+ | $0.12 | $0.12 |
| 45,000+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The terminal accepts 18 to 22 AWG wire, corresponding to a wire cross-section range of 0.30-0.90 mm².
The tab is 0.250 inches (6.35 mm) wide and 0.032 inches (0.81 mm) thick, with a tab length of 0.620 inches (15.75 mm).
Yes, the datasheet confirms it is always RoHS and ELV compliant.
The insulation diameter range is 2.16 to 3.18 mm.
It uses an F-crimp type termination.
