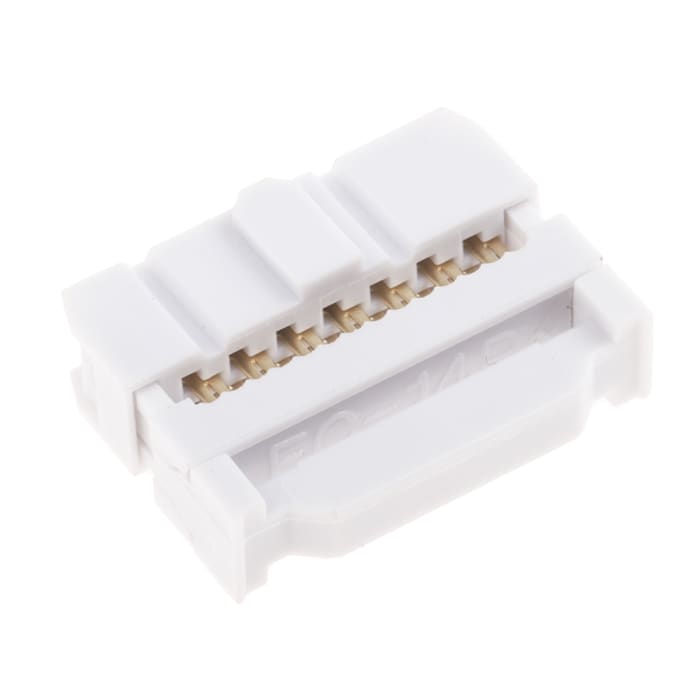

625-7454 This RS PRO 625-7454 is a 14-way IDC connector designed for cable termination. It features a 2-row configuration with a 2.54mm pitch and a right-angle mounting type.
Mfr Part #:

625-7454

Available from 1 distributors
Mfr Name: RS COMPONENTS
RS COMPONENTS
This RS PRO 625-7454 is a 14-way IDC connector designed for cable termination. It features a 2-row configuration with a 2.54mm pitch and a right-angle mounting type.
✓ Total Stock: 1 pcs
$ Price Range: $0.99

625-7454 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

625-7454 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Contact Plating
Contact Resistance
Country of Origin
Current Rating
Housing Material
Mounting Type
Number of Contacts
Number of Rows
Orientation
Pitch
Product Type
Termination Style
Voltage Rating
View Similar Products (0)

625-7454 Description

Short technical summary and product information.

The RS PRO 625-7454 is a 14-way, 2-row IDC (Insulation Displacement Connector) designed for efficient cable termination in low voltage power applications. This female connector features a right-angle mounting type and a 2.54mm pitch, with gold over nickel plated phosphor bronze contacts for reliable conductivity.



Constructed with a durable polybutylene terephthalate housing, this connector is rated for a maximum voltage of 500V and a current of 1A. It operates within a temperature range of -55°C to 105°C and offers a contact resistance of 15Ω. The design includes central bump polarization and double depth polarizing grooves for ease of mating, along with built-in strain relief.



IDC connectors are ideal for use with flat ribbon cables, offering a quick and solderless termination method. They are commonly found in computer peripherals, phones, and laptops, significantly reducing assembly times compared to traditional wire stripping methods.

625-7454 Quick Information

Product Type: IDC Connector
Canonical Name: RS PRO 14-Way IDC Connector Female for Cable, 2 Row
Subcategory: IDC Connector

625-7454 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

625-7454 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

625-7454 Features

  • 14-way, 2-row IDC connector
  • Rated for 500V and 1A current
  • 2.54mm pitch with right-angle mount
  • Gold over nickel plated contacts
  • Durable polybutylene terephthalate housing

625-7454 Applications

  • Ideal for flat ribbon cable termination
  • Used in computer peripherals
  • Suitable for phones and laptops
  • Low voltage power applications

625-7454 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the RS PRO 625-7454 IDC connector?

The RS PRO 625-7454 IDC connector has a voltage rating of 500V.

What is the current rating for this IDC connector?

This IDC connector is rated for a current of 1A.

What is the pitch between contacts on the 625-7454 connector?

The pitch between contacts on the 625-7454 connector is 2.54mm.

What are the operating temperature limits for this connector?

The operating temperature range for this connector is from -55°C to 105°C.

What type of termination does the 625-7454 use?

The 625-7454 uses IDC (Insulation Displacement Connector) termination.

What is the gender of the RS PRO 625-7454 connector?

The RS PRO 625-7454 connector is female.
