| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
88 pcs
|
88 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Air Flow | |
| Approval Agency | |
| Bearing Type | |
| Fan Type | |
| Housing Material | |
| Lead Style | |
| Noise | |
| Operating Temperature | |
| Power (Watts) | |
| RPM | |
| Termination | |
| Termination Style | |
| Voltage | |
| Voltage Range | |
| Weight | |
| Width |

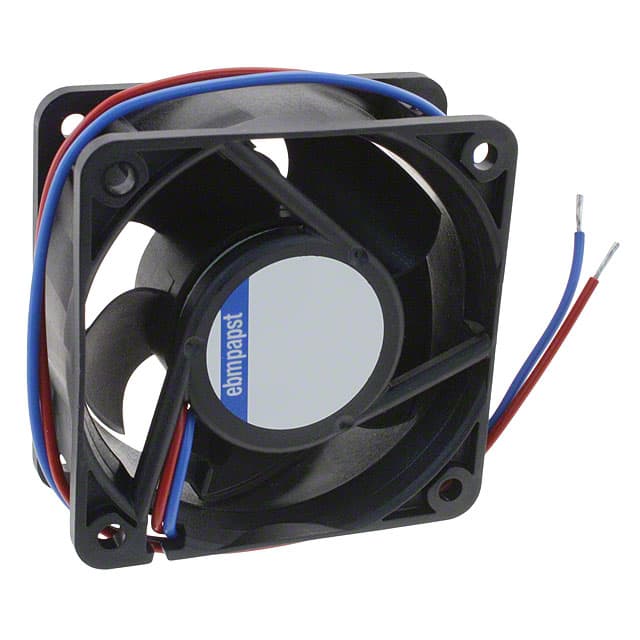

The 624HH is a DC axial compact fan manufactured by ebm-papst. It operates at a nominal voltage of 24 VDC with a range of 18 to 28 VDC. The fan delivers an airflow of 56 m³/h (33.0 CFM) at a speed of 8200 RPM, with a power consumption of 3.6 W. Acoustic output is rated at 43.0 dB(A) sound pressure level and 5.6 B sound power level.
The fan measures 60 x 60 x 25.4 mm and weighs 84.82 g. It features a glass-fiber reinforced PA plastic impeller and a glass-fiber reinforced PBT plastic housing. The bearing type is ball, providing a service life of 65000 hours at 40°C and 32500 hours at maximum temperature. Airflow direction is exhaust over struts, with clockwise rotation when viewed toward the rotor.
Termination is via 2 wire leads (AWG22, TR64, stripped and tin-plated). Motor protection includes reverse polarity and blocked rotor protection, with electronic locked-rotor protection. Approvals include CE, CSA, UL, and VDE. The fan is suitable for a wide operating temperature range of -20°C to 70°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.87 | $30.87 |
| 10+ | $25.22 | $25.22 |
| 45+ | $25.15 | $25.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
24 VDC
-20 °C to 70 °C
56 m³/h (33.0 CFM)
43.0 dB(A)
Ball bearing
65000 hours
CE, CSA, UL, VDE
