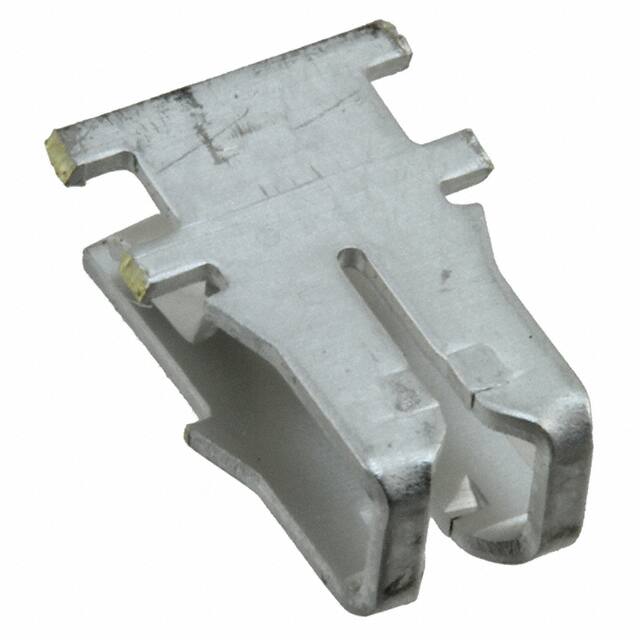

The TE Connectivity MAG-MATE 62420-1 is a Poke-In magnet wire terminal designed for reliable IDC (Insulation Displacement Connection) termination of magnet wires. It accommodates magnet copper or magnet aluminum wire in the 22-20 AWG range and lead wire from 20-18 AWG (0.81-1.02 mm²).
The terminal features a locking mechanism and barbs for secure mating retention within a housing. It is uninsulated and has a Post-Tin plating material. The overall length is 7.62 mm with a material thickness of 0.41 mm.
This component is rated for an operating temperature range of -20 to 105 °C. It is packaged in reel form with 12,000 pieces per reel. Compatible with TE Connectivity MAG-MATE connector systems.
| Qty | Low | High |
|---|---|---|
| 12,000+ | $0.07 | $0.07 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It accepts 22-20 AWG magnet wire (copper or aluminum) and 20-18 AWG lead wire (0.81-1.02 mm²).
Yes, it is compliant with EU RoHS 2011/65/EU.
The operating temperature range is -20 to 105 °C.
It is packaged on a reel with 12,000 pieces per reel.
It uses IDC (Insulation Displacement Connection) termination.
