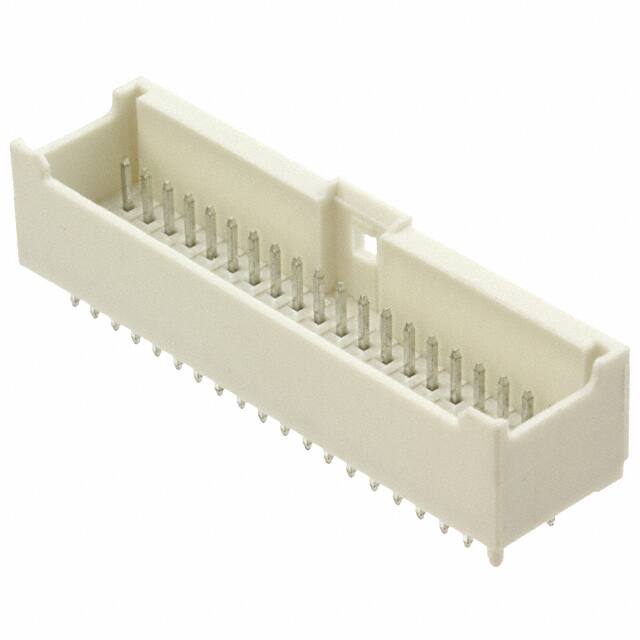

62404021622 Würth Elektronik 62404021622 is a 40-position, dual row, 2.00mm pitch, vertical shrouded header with through hole termination, rated for 3A and 250V.
Mfr Part #:

62404021622

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 62404021622 is a 40-position, dual row, 2.00mm pitch, vertical shrouded header with through hole termination, rated for 3A and 250V.
✓ Total Stock: 24 pcs
$ Price Range: $4.83 - $8.25

62404021622 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
24 pcs
On Request
24 pcs On Request 4 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

62404021622 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Form
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mating Cycles
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

62404021622 Description

Short technical summary and product information.

The Würth Elektronik 62404021622 is a 40-position, dual row, 2.00mm pitch male pin header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a latch holder for secure mating. The header is through hole mounted with press-fit and solder termination options. Contacts are stamped copper alloy with tin plating, and the insulator is white PBT with UL94 V-0 flammability rating. Electrical ratings include 3A current and 250V AC working voltage, with contact resistance of 20 mΩ max and dielectric withstanding voltage of 1000V AC. Operating temperature range is -25°C to 85°C. The component is RoHS and lead free compliant, certified to E323964 c us, and packaged in tube.

62404021622 Quick Information

Product Type: Header, Male Pins
Series: WR-WTB
Canonical Name: Würth Elektronik 62404021622 - 2.00mm Dual Row Male Vertical Shrouded Header, 40 Positions, Through Hole
Subcategory: Shrouded Header

62404021622 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

62404021622 Estimated Pricing

Qty Low High
1+ $8.25 $8.25
12+ $7.14 $7.14
108+ $6.51 $6.51
252+ $5.25 $5.25
504+ $4.83 $4.83

Estimated market price range - modelled values for guidance only, not live distributor offers.

62404021622 Features

  • 40 positions in dual row configuration.
  • 2.00mm pitch with 5.00mm row spacing.
  • Shrouded 4-wall design with latch holder.
  • Rated for 3A current and 250V AC.
  • RoHS and lead free compliant.

62404021622 Applications

  • Board-to-cable/wire interconnection applications.
  • Industrial control and automation systems.
  • Consumer electronics and appliances.
  • Data communication equipment.

62404021622 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 62404021622 header have?

It has 40 positions arranged in 2 rows.

What is the pitch of this connector?

The pitch is 2.00mm with a row spacing of 5.00mm.

What is the current rating of the 62404021622?

The current rating is 3A.

What is the voltage rating?

The voltage rating is 250V AC.

What mounting type does this header use?

It is a through hole mounting type with press-fit and solder termination.

What is the operating temperature range?

The operating temperature range is -25°C to 85°C.

Is the 62404021622 RoHS compliant?

Yes, it is RoHS and lead free compliant as stated in the datasheet.
