62403821622

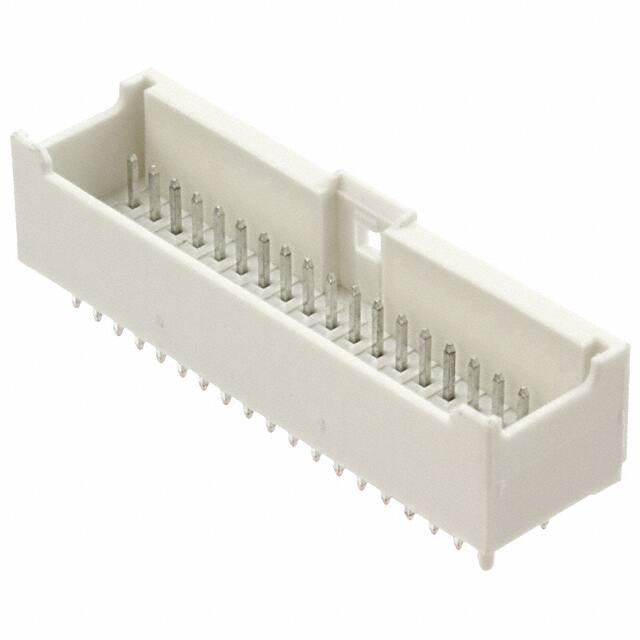

The Würth Elektronik 62403821622 is a 2.00mm pitch, dual row male vertical shrouded header designed for reliable board-to-cable/wire interconnections. This connector features a robust 4-wall shrouded design with a latch holder fastening system, ensuring secure mating and protection of the male pins. It has 38 positions, all loaded, arranged in 2 rows with a row spacing of 5.00mm. The contacts are made of copper alloy with a tin finish, and the insulator is molded from white polybutylene terephthalate (PBT) with a flammability rating of UL94 V-0.

Electrically, the header is rated for 3A per contact and 250V AC working voltage. It offers an insulator resistance greater than 1000 MΩ and a dielectric withstanding voltage of 1000V AC, with a maximum contact resistance of 20 mΩ. The operating temperature range spans -25°C to +85°C. The packaging is in tube form, and the component is RoHS compliant and lead-free.

This connector is suitable for general electronics equipment where a reliable, polarized, and secure connection is needed. The through hole mounting with both press-fit and solder termination options provides flexibility in assembly processes. The board guide feature assists in proper alignment during PCB placement.
