Mfr Part #:

62403621722

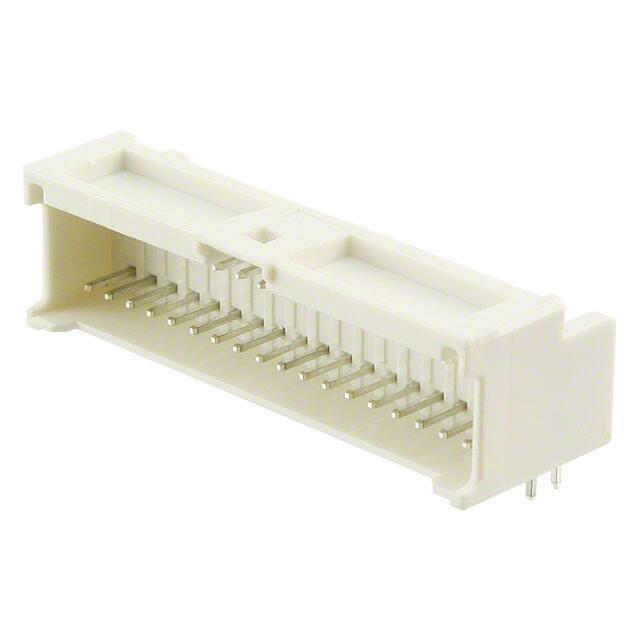

This is a 36-position, 2.00mm pitch, dual-row male shrouded header with a right-angle through-hole mounting. It features tin-plated copper alloy contacts and a PBT insulator with UL94 V-0 rating.

✓ Total Stock: 1,300 pcs

$ Price Range: $4.66 - $7.97

62403621722 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	1,300 pcs On Request	1300 pcs	On Request	4	On Request	On Request	On Request	On Request	On Request

62403621722 Description

Short technical summary and product information.

The Würth Elektronik 62403621722 is a 36-position, dual-row male shrouded header designed for board-to-cable/wire applications. It features a 2.00mm pitch and a right-angle through-hole mounting style, with a 4-wall shrouded design and latch holder for secure mating. The contacts are made of copper alloy with tin plating, and the insulator is white PBT with a flammability rating of UL94 V-0.

Electrical ratings include 3A current and 250V AC voltage, with contact resistance of 20 mOhm max and insulation resistance greater than 1000 MOhm. The dielectric withstanding voltage is 1000V AC/min. The operating temperature range is -25°C to 85°C, and the part is RoHS compliant and lead-free.

The connector is packaged in tubes and meets JEDEC lead-free wave soldering requirements. It is suitable for general electronic equipment, though not recommended for safety-critical applications without additional review.

62403621722 Quick Information

Product Type: Header, Male Pins

Series: WR-WTB

Canonical Name: 2.00mm Dual Row Male Horizontal Shrouded Header, 36 Positions, Right Angle

Subcategory: Shrouded Header, Male Pins

62403621722 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes

62403621722 Estimated Pricing

Qty	Low	High
1+	$7.97	$7.97
10+	$6.90	$6.90
104+	$6.29	$6.29
260+	$5.07	$5.07
507+	$4.66	$4.66

Estimated market price range - modelled values for guidance only, not live distributor offers.

62403621722 Features

36 positions in dual-row configuration.
2.00mm pitch for compact designs.
Shrouded 4-wall header with latch holder.
Rated for 3A at 250V AC.
Operating temperature range -25°C to 85°C.

62403621722 Applications

Board-to-cable wire connections.
General purpose electronic equipment.
Industrial control applications.

62403621722 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions?

36 positions arranged in 2 rows, all positions loaded.

What is the pitch?

2.00mm (0.079 inches).

What is the current rating?

3A per contact.

What is the voltage rating?

250V AC working voltage.

What is the mounting type?

Through hole, right angle.

What is the operating temperature range?

-25°C to 85°C.

Is this part RoHS compliant?

Yes, RoHS3 compliant and lead-free.

Category	Headers, Male Pins
Manufacturer Name	Würth Elektronik
Connector Type	Header
Contact Finish	Tin
Contact Length	3.20mm (0.126")
Contact Material	Copper Alloy
Contact Resistance	20 mOhm max
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3A
Current Rating (Amps)	3A
Dielectric Withstanding Voltage	1000V AC/min
Fastening Type	Latch Holder
Insulation Color	White
Insulation Height	11.50mm (0.453")
Insulation Material	Polybutylene Terephthalate (PBT)
Insulation Resistance	>1000 MOhm
Material Flammability Rating	UL94 V-0
Mating Cycles	25
Mounting Type	Through Hole, Right Angle
Number of Positions	36
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-25°C ~ 85°C
Pitch	2.00mm (0.079")
Row Spacing	0.197" (5.00mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Tape & Reel	No
Termination	Press-Fit, Solder
Voltage Rating	250V
