| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
598 pcs
|
598 pcs | On Request | 13 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

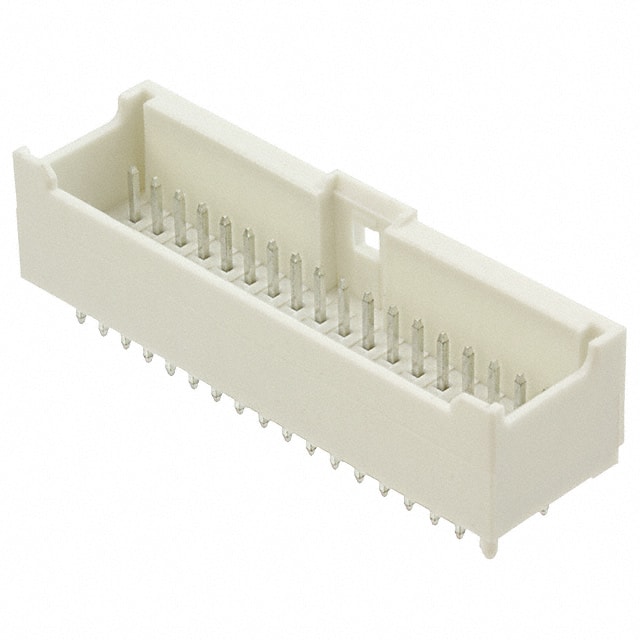

The Würth Elektronik 62403621622 is a 36-position, dual row male pin header designed for board-to-cable/wire applications. It features a 2.00mm pitch and 5.00mm row spacing, with a shrouded 4-wall design and latch holder fastening for secure mating.
Electrical ratings include 3A current and 250V AC working voltage, with contact resistance of 20 mΩ max and dielectric withstanding voltage of 1000V AC. The insulator is white PBT with UL94 V-0 flammability rating, and contacts are copper alloy with tin plating.
The header supports through hole mounting with press-fit or solder termination. It is packaged in tube and rated for 25 mating cycles. Operating temperature range is -25°C to 85°C. The component is RoHS and lead-free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.73 | $7.73 |
| 10+ | $6.69 | $6.69 |
| 104+ | $6.10 | $6.10 |
| 260+ | $4.92 | $4.92 |
| 507+ | $4.53 | $4.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It has 36 positions arranged in 2 rows.
The pitch is 2.00mm.
The current rating is 3A.
The working voltage is 250V AC.
It is a through hole component with press-fit or solder termination.
Yes, it is RoHS3 compliant and lead-free.
The operating temperature range is -25°C to 85°C.
