| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,411 pcs
|
1411 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

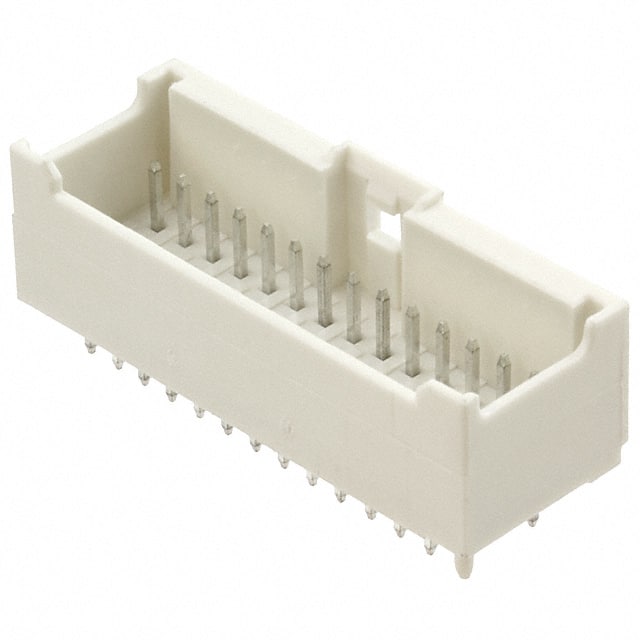

The Würth Elektronik 62402821622 is a 28 position, dual row male vertical shrouded header with a 2.00mm pitch and 5.00mm row spacing. It features a shrouded 4-wall design with latch holder fastening for secure mating. The header is through hole mounted with press-fit and solder termination options.
Electrical ratings include a current rating of 3A, working voltage of 250V AC, contact resistance of 20 mΩ maximum, and insulation resistance greater than 1000 MΩ. The dielectric withstanding voltage is 1000V AC per minute. The operating temperature range is -25°C to 85°C.
The insulator is made of white PBT with UL94 V-0 flammability rating. Contacts are copper alloy with tin plating and a square contact shape. The contact length is 3.20mm and insulation height is 9.25mm. The header is rated for 25 mating cycles and includes a board guide feature.
Packaging is in tube. The component is RoHS compliant and lead free per the datasheet. It is designed for general electronics equipment and is certified to UL standard E323964.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.56 | $6.56 |
| 10+ | $5.68 | $5.68 |
| 102+ | $5.18 | $5.18 |
| 255+ | $4.17 | $4.17 |
| 510+ | $3.84 | $3.84 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
28 positions, all loaded, in 2 rows.
2.00mm pitch with 5.00mm row spacing.
3 A.
250 V AC.
Through hole with press-fit and solder termination.
-25°C to 85°C.
Yes, RoHS3 compliant and lead free per the datasheet.
