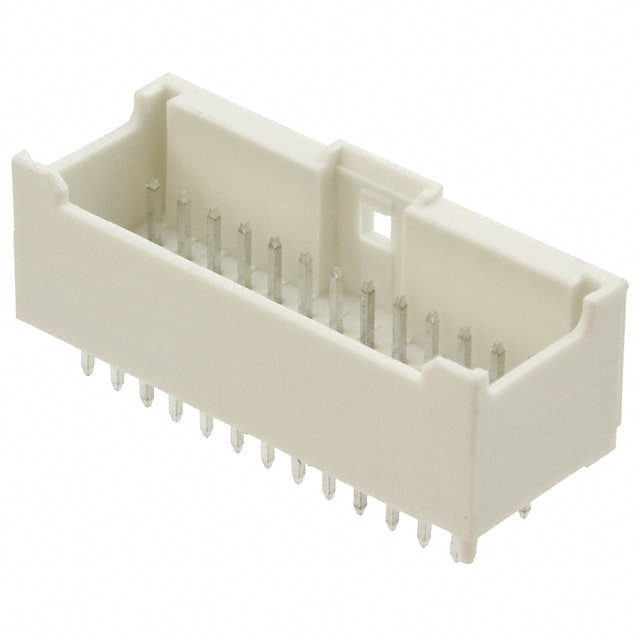

62402621622 26 position 2.00mm pitch shrouded male pin header from Würth Elektronik, through hole mount, with latch holder and board guide.
Mfr Part #:

62402621622

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
26 position 2.00mm pitch shrouded male pin header from Würth Elektronik, through hole mount, with latch holder and board guide.
✓ Total Stock: 6 pcs
$ Price Range: $3.57 - $6.09

62402621622 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
6 pcs
On Request
6 pcs On Request 6 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

62402621622 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
Working Voltage
View Similar Products (0)

62402621622 Description

Short technical summary and product information.

This 26 position, 2.00mm dual row male vertical shrouded header by Würth Elektronik is designed for board-to-cable/wire applications. It features a 4-wall shrouded housing for improved mating alignment and protection.



The header uses copper alloy contacts with a tin finish and square contact shape. The insulator is white PBT with a UL94 V-0 flammability rating. It supports both press-fit and solder termination and includes a latch holder for secure cable retention.



Electrical ratings include 3A current, 250V AC working voltage, and an operating temperature range of -25°C to 85°C. Contact resistance is 20 mΩ maximum with insulation resistance >1000 MΩ and dielectric withstanding voltage of 1000 V AC/minute.

62402621622 Quick Information

Product Type: Header, Male Pins
Series: WR-WTB
Canonical Name: 26 Position 2.00mm Pitch Male Pin Header, Through Hole, Shrouded
Subcategory: Header, Male Pin

62402621622 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

62402621622 Estimated Pricing

Qty Low High
1+ $6.09 $6.09
10+ $5.27 $5.27
108+ $4.81 $4.81
252+ $3.88 $3.88
504+ $3.57 $3.57

Estimated market price range - modelled values for guidance only, not live distributor offers.

62402621622 Features

  • 26 positions in a 2.00mm pitch header.
  • Shrouded 4-wall design with latch holder.
  • Rated for 3A and 250V AC operation.
  • Supports through hole press-fit or solder termination.
  • Operating temperature from -25°C to 85°C.

62402621622 Applications

  • Board-to-cable/wire connections in electronics.
  • Control and signal interface applications.
  • Industrial and consumer electronic equipment.

62402621622 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the 62402621622 header?

The pitch is 2.00mm (0.079 inches).

How many positions does this header have?

It has 26 positions, all loaded.

What is the current rating of this header?

The current rating is 3A.

What is the voltage rating?

The voltage rating is 250V AC.

What mounting type does this connector use?

Through hole mounting, with press-fit or solder termination.
