62402421622 24-position, 2.00mm pitch, through-hole, shrouded male pin header from Würth Elektronik. Rated for 3A and 250V AC.
Mfr Part #:

62402421622

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
24-position, 2.00mm pitch, through-hole, shrouded male pin header from Würth Elektronik. Rated for 3A and 250V AC.
✓ Total Stock: 20 pcs
$ Price Range: $3.35 - $5.72

62402421622 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 5 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

62402421622 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mating Cycles
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

62402421622 Description

Short technical summary and product information.

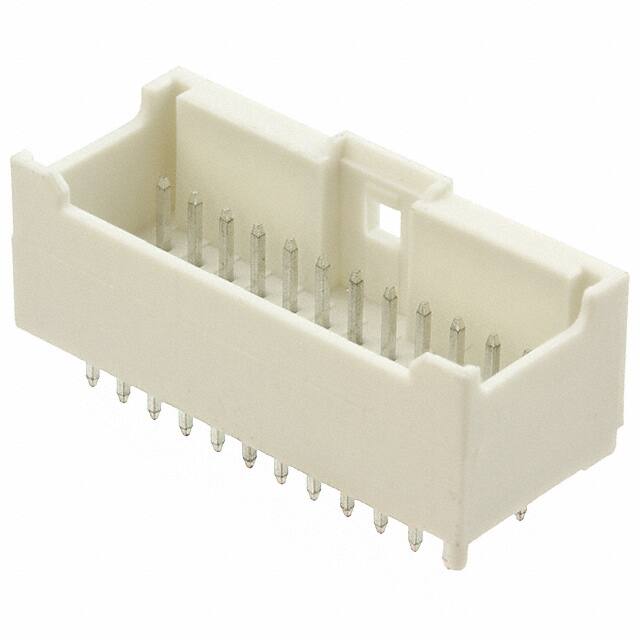

The Würth Elektronik 62402421622 is a 24-position, dual-row, 2.00mm pitch male pin header designed for board-to-cable/wire applications. It features a shrouded 4-wall design with a latch holder for secure mating. The connector has a vertical orientation and is through-hole mounted with press-fit or solder termination. The contacts are made of copper alloy with a tin finish, and the insulator is white PBT with a UL94 V-0 flammability rating. Electrical ratings include a current rating of 3A and a voltage rating of 250V AC. The contact resistance is 20 mΩ max, dielectric withstanding voltage is 1000V AC, and insulator resistance is greater than 1000 MΩ. The operating temperature range is -25°C to 85°C. The connector is qualified for 25 mating cycles. It is packaged in a tube and is RoHS and lead-free compliant. The board guide feature aids in alignment during assembly. This connector is suitable for use in general electronic equipment as specified by the manufacturer.

62402421622 Quick Information

Product Type: Header, Male Pins
Canonical Name: Würth Elektronik 62402421622 - 2.00mm Dual Row Male Vertical Shrouded Header, 24 Positions
Subcategory: Shrouded Header

62402421622 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

62402421622 Estimated Pricing

Qty Low High
1+ $5.72 $5.72
10+ $4.95 $4.95
100+ $4.51 $4.51
260+ $3.64 $3.64
500+ $3.35 $3.35

Estimated market price range - modelled values for guidance only, not live distributor offers.

62402421622 Features

  • 24-position dual-row shrouded header.
  • 2.00mm pitch for compact designs.
  • Rated for 3A current and 250V AC.
  • Through-hole press-fit and solder termination.
  • UL94 V-0 flame retardant insulator.

62402421622 Applications

  • Board-to-cable/wire connections.
  • Ideal for industrial control systems.
  • Used in general electronics equipment.
  • Suitable for applications requiring secure mating with latch holder.

62402421622 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

24 positions.

What is the pitch of this connector?

2.00mm.

What is the current rating?

3A.

What is the voltage rating?

250V AC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-25°C to 85°C.

What is the insulation material and flammability rating?

Polybutylene Terephthalate (PBT) with UL94 V-0 rating.
