Mfr Part #:

624022213322

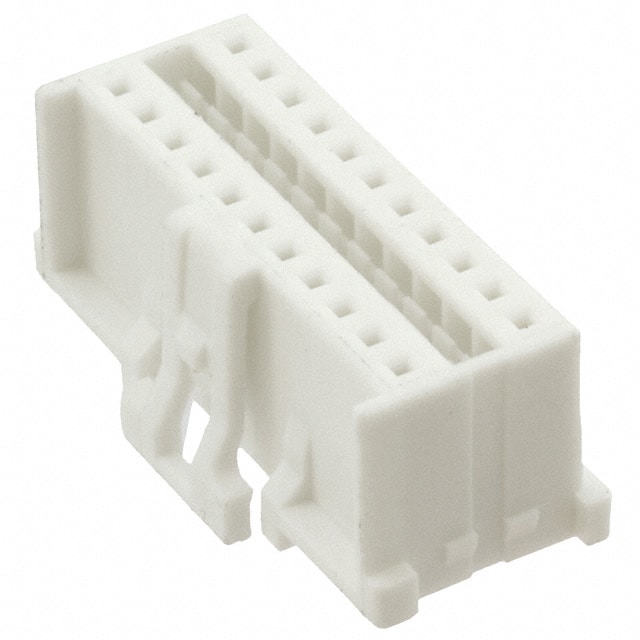

This is a 22-position, 2-row female terminal housing from Würth Elektronik's WR-WTB series, with 2.00mm pitch and crimp contacts. It features a latch lock, free-hanging mounting, and is rated for 3A and 1000V AC.

✓ Total Stock: 7,500 pcs

$ Price Range: $0.83 - $1.56

624022213322 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Chanetech ✓ Non-Authorised Inventory information	7,500 pcs On Request	7500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

624022213322 Description

Short technical summary and product information.

This part is a 22-position, dual-row female terminal housing from the Würth Elektronik WR-WTB series. It is designed for wire-to-board connections and features a 2.00mm pitch with 5.00mm row spacing. The housing accepts female socket contacts with crimp termination and utilizes a latch lock for secure mating. It is intended for free-hanging (in-line) mounting and is colored white.

Key electrical specifications include a rated current of 3A (inferred from similar pin counts) and a minimum withstanding voltage of 1000V AC. Insulation resistance is at least 1000MΩ. The operating temperature range is -25°C to +85°C. The insulator is made of Nylon 66 with a UL94 V-0 flammability rating.

This housing is part of the WR-WTB 2.00mm dual-row connector family, suitable for general electronic equipment. The crimp contact design allows for reliable wire termination. The latch lock ensures positive retention when mated with corresponding headers.

The product is packaged in a bag and is RoHS and REACH compliant. It holds cULus approval (E323964).

624022213322 Quick Information

Product Type: Terminal Housing

Series: WR-WTB 2.00 mm Dual Row

Canonical Name: 22 Position 2.00mm Dual Row Female Terminal Housing

Subcategory: Wire-to-Board

624022213322 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: Compliant

624022213322 Estimated Pricing

Qty	Low	High
1+	$1.56	$1.56
10+	$1.35	$1.35
50+	$1.23	$1.23
100+	$0.99	$0.99
250+	$0.91	$0.91
500+	$0.83	$0.83

Estimated market price range - modelled values for guidance only, not live distributor offers.

624022213322 Features

22-position dual-row terminal housing.
2.00mm pitch for compact designs.
Female socket contacts with crimp termination.
Latch lock ensures secure mating.
UL94 V-0 flame-retardant nylon housing.

624022213322 Applications

For wire-to-board interconnect applications.
Supports dual-row 2.00mm pitch mating headers.
Works in -25°C to +85°C environments.
Ideal for general electronic equipment.

624022213322 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the pitch of this connector housing?

2.00mm

How many positions does this housing have?

22 positions in 2 rows

What is the rated current?

3A (inferred from similar variants)

What is the withstanding voltage?

1000V AC minimum

What is the mounting type?

Free hanging (in-line)

What is the operating temperature range?

-25°C to +85°C

What insulator material and flammability rating does it have?

Nylon 66 with UL94 V-0 rating

Category	Rectangular Connector Housings
Manufacturer Name	Würth Elektronik
AEC Qualified	No
Automotive Grade	No
Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Gender	Female
Industrial Grade	Yes
Insulation Resistance	1000 MΩ
Insulator Material	Nylon 66
Lead Spacing	2.0 mm
Lead Style	Crimp
Length	23.6 mm
Medical Grade	No
Military Grade	No
Mounting Type	Free Hanging (In-Line)
Number of Positions	22
Number of Rows	2
Operating Temperature	-25°C to +85°C
Pitch	2.00mm
Rated Current	3 A
Row Spacing	5.00mm
Tape & Reel	No
Type	Terminal Housing
Withstanding Voltage	1000 V (AC)
