| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

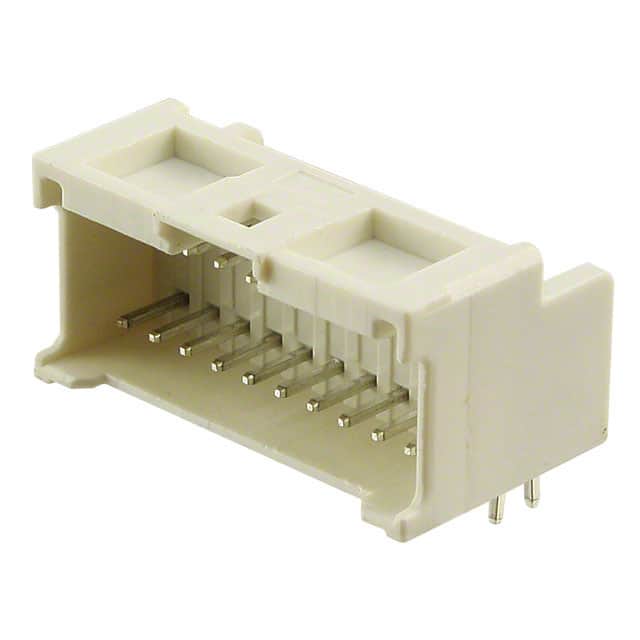

The Würth Elektronik 62402021722 is a 2.00mm pitch dual-row male header connector designed for board-to-cable/wire connections. The connector features a shrouded 4-wall design with latch holder fastening, providing secure mating and protection for the contacts.
This 20-position connector has two rows with all positions loaded. It is mounted through-hole with a right-angle orientation, allowing for horizontal cable exit. The contacts are made of copper alloy with a tin finish, and the insulator is white Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating.
Electrical ratings include a current rating of 3A and a voltage rating of 250V AC. The connector has an insulator resistance greater than 1000 MΩ and a dielectric withstanding voltage of 1000V AC. It is rated for 25 mating cycles and operates over a temperature range of -25°C to 85°C.
The part is packaged in tubes and is compliant with RoHS3 and REACH. Termination options include both press-fit and solder connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.87 | $4.87 |
| 10+ | $4.22 | $4.22 |
| 115+ | $3.84 | $3.84 |
| 253+ | $3.10 | $3.10 |
| 506+ | $2.85 | $2.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
It has 20 positions arranged in 2 rows.
The current rating is 3A.
The voltage rating is 250V AC.
It is a through-hole, right-angle mount connector.
