| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,420 pcs
|
2420 pcs | On Request | 1 | On Request | On Request | 2015 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Durability | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

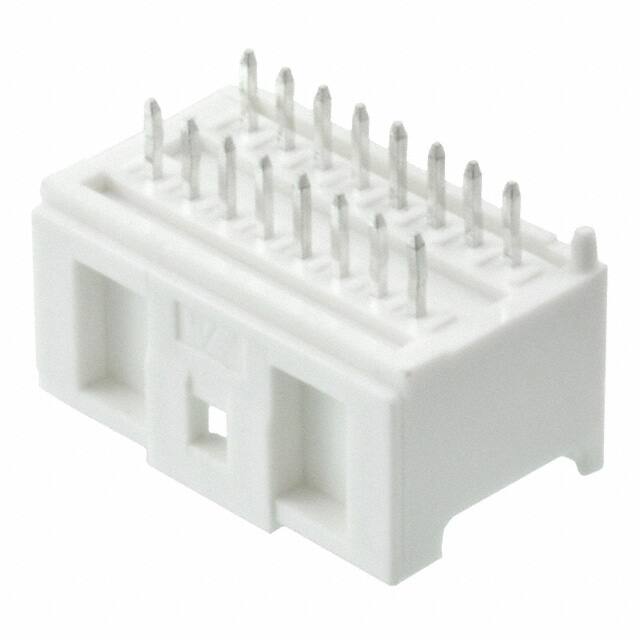

The Würth Elektronik 62401621622 is a WR-WTB series dual-row male vertical shrouded header designed for board-to-cable/wire applications. It features 16 positions arranged in 2 rows with a 2.00mm pitch and a 5.00mm row spacing. The connector uses a through-hole mounting style with press-fit and solder termination options.
The header is fully shrouded with a 4-wall design and includes a latch holder fastening system for secure mating. It is rated for a current of 3A and a voltage of 250V, with an operating temperature range of -25°C to 85°C. The insulation material is Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating, and the contacts are made of copper alloy with a tin finish.
This component is RoHS, REACH, and Halogen Free compliant. It is packaged in a tube and has a durability rating of 25 mating cycles. The part is suitable for use in general electronic equipment where a reliable wire-to-board connection is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.70 | $3.70 |
| 10+ | $3.20 | $3.20 |
| 100+ | $2.92 | $2.92 |
| 250+ | $2.35 | $2.35 |
| 500+ | $2.17 | $2.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
This header has 16 positions.
The current rating is 3A.
The voltage rating is 250V.
The mounting type is through hole.
The operating temperature range is -25°C to 85°C.
The insulation material is Polybutylene Terephthalate (PBT) with a UL94 V-0 flammability rating.
