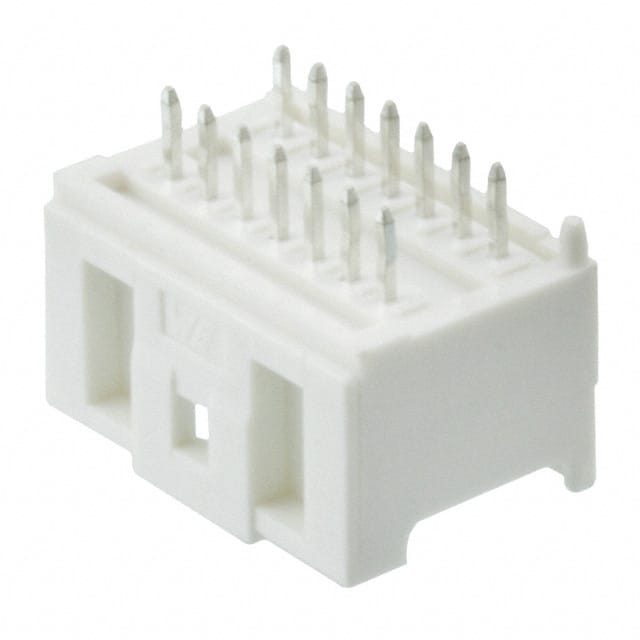

62401421622 14 position, 2.00mm pitch, dual row, through hole shrouded header with latch holder. Rated 3A at 250V.
Mfr Part #:

62401421622

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
14 position, 2.00mm pitch, dual row, through hole shrouded header with latch holder. Rated 3A at 250V.
✓ Total Stock: 1,860 pcs
$ Price Range: $1.92 - $3.28

62401421622 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
1,860 pcs
On Request
1860 pcs On Request 10 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

62401421622 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Dielectric Withstanding Voltage
Fastening Type
Features
Halogen Free
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mating Cycles
Medical Grade
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

62401421622 Description

Short technical summary and product information.

This is a 14-position, 2-row, 2.00mm pitch male pin header from Würth Elektronik. It features a shrouded 4-wall design with a latch holder for secure mating. The header is through-hole mounted and supports both press-fit and solder termination.



Electrical ratings include 3A current and 250V AC working voltage. Contact resistance is 20 mΩ max, insulation resistance >1000 MΩ, and dielectric withstanding voltage 1000V AC. Operating temperature range is -25°C to 85°C.



The insulator is white PBT with UL94 V-0 flammability rating. Contacts are copper alloy with tin plating. The header is designed for board-to-cable/wire applications and includes a board guide feature. Packaging is in tube.



This component is RoHS3 compliant and lead-free. It is suitable for general electronics equipment. For applications requiring higher safety, written approval from Würth Elektronik is needed.

62401421622 Quick Information

Product Type: Header, Male Pins
Series: WR-WTB
Canonical Name: Würth Elektronik 62401421622 14 Position 2.00mm Pitch Dual Row Shrouded Header
Subcategory: Shrouded Header

62401421622 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

62401421622 Estimated Pricing

Qty Low High
1+ $3.28 $3.28
10+ $2.84 $2.84
93+ $2.59 $2.59
279+ $2.09 $2.09
527+ $1.92 $1.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

62401421622 Features

  • 14 positions in dual row 2.00mm pitch.
  • Shrouded 4-wall design with latch holder.
  • Rated for 3A current and 250V voltage.
  • Through hole mounting with press-fit or solder.
  • RoHS3 compliant and lead-free.

62401421622 Applications

  • Ideal for board-to-cable wire connections.
  • Used in general purpose electronic equipment.
  • Suitable for applications requiring secure mating.

62401421622 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 62401421622 header have?

14 positions.

What is the pitch of this header?

2.00mm (0.079 inches).

What is the current rating?

3A.

What is the voltage rating?

250V AC.

What is the mounting type?

Through hole.

What is the operating temperature range?

-25°C to 85°C.

Is this component RoHS compliant?

Yes, RoHS3 compliant and lead-free.
