| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 4 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

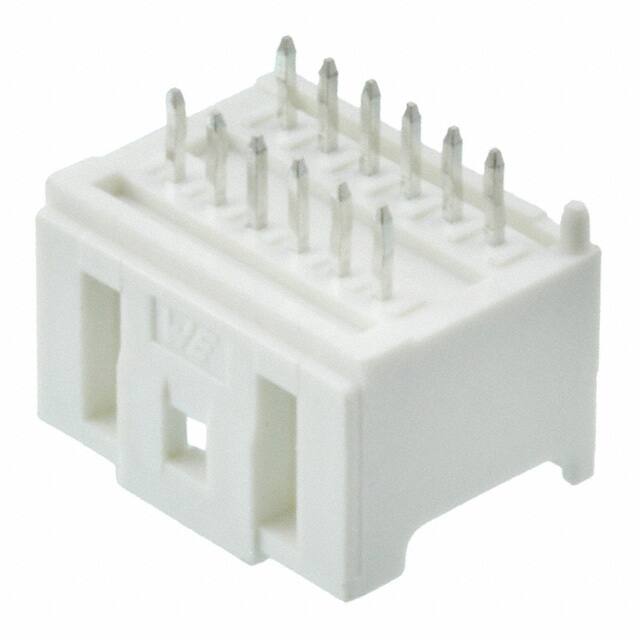

The Würth Elektronik 62401221622 is a 12 position, dual row, male pin header with a 2.00mm pitch and 5.00mm row spacing. It features a shrouded 4-wall design with a latch holder fastening system, making it suitable for board-to-cable/wire connections. The header is through-hole mounted and supports both press-fit and solder termination.
Electrical ratings include a current rating of 3A per contact and a voltage rating of 250V AC. Contact resistance is 20 mOhm maximum, insulator resistance exceeds 1000 MOhm, and dielectric withstanding voltage is 1000V AC. The operating temperature range is -25°C to 85°C.
The insulator is made of white PBT with a UL94 V-0 flammability rating. Contacts are copper alloy with tin plating. The header is rated for 25 mating cycles and is RoHS and lead-free compliant. Packaging is in tube.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.04 | $3.04 |
| 10+ | $2.63 | $2.63 |
| 105+ | $2.40 | $2.40 |
| 280+ | $1.94 | $1.94 |
| 525+ | $1.78 | $1.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The header has 12 positions in a dual row configuration.
The pitch is 2.00mm with a row spacing of 5.00mm.
The current rating is 3A per contact.
The voltage rating is 250V AC.
It is a through-hole mounting header with press-fit and solder termination options.
The operating temperature range is -25°C to 85°C.
Yes, it is RoHS3 compliant and lead-free.
