Mfr Part #:

6222BG

Description:

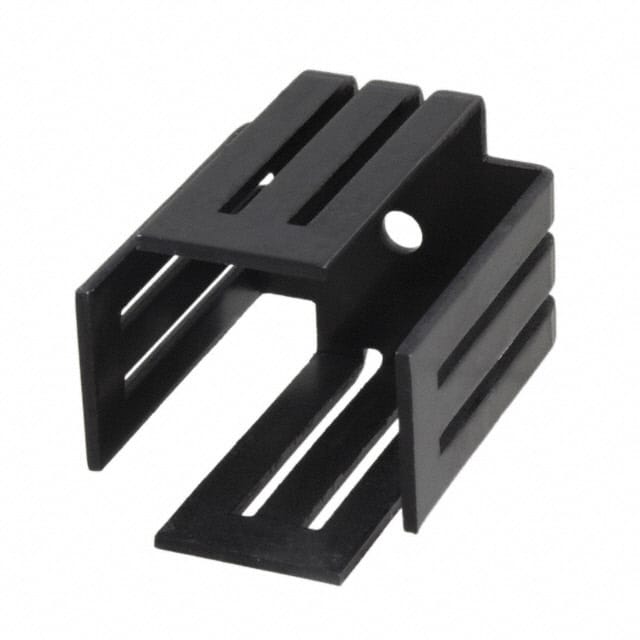

BRIDGE RECTIFIER HEATSINK 0.142"

Stock on Request

6222BG Description

Short technical summary and product information.

BRIDGE RECTIFIER HEATSINK 0.142"

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

6223BG

Aavid, Thermal Division of Boyd Corporation

BRIDGE RECTIFIER HEATSINK 0.163"

6224BG

Aavid, Thermal Division of Boyd Corporation

HEAT SINK BRIDGE RECT 31.75MM

Category	Heat Sinks
Manufacturer Name	Aavid, Thermal Division of Boyd Corporation
Attachment Method	Bolt On
Fin Height	1.250" (31.75mm)
Length	1.060" (26.92mm)
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	Bridge Rectifiers
Power Dissipation @ Temperature Rise	3.0W @ 30°C
Shape	Square, Fins
Thermal Resistance @ Forced Air Flow	3.00°C/W @ 400 LFM
Thermal Resistance @ Natural	9.40°C/W
Type	Board Level
Width	1.060" (26.92mm)
