| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
240 pcs
|
240 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuse Style | |
| Halogen Free | |
| Industrial Grade | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Torque | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Power Acceptance | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

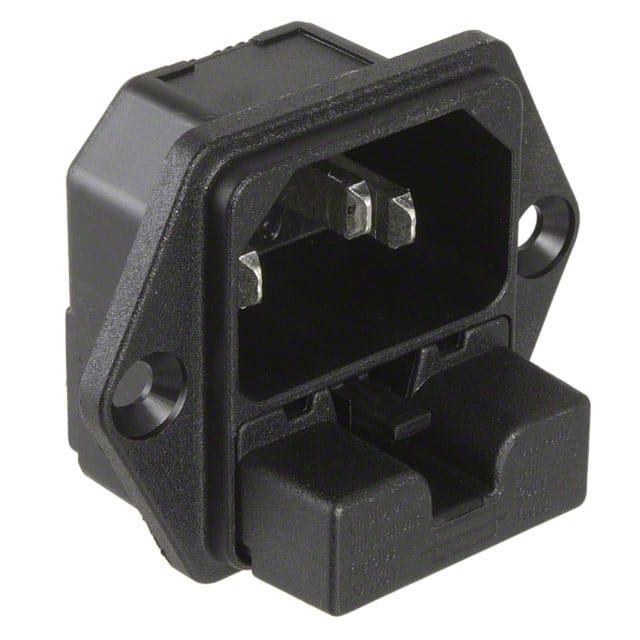

The Schurter 6220.2100 is an IEC 320-C14 appliance inlet with an integrated 2-pole fuse holder for 5x20mm fuses. It is rated for 10A at 250VAC and is unfiltered, making it suitable for commercial applications where line filtering is not required.
This power entry module features a panel mount design with screw-on mounting from the front or rear side. Termination is via solder eyelet terminals. The front side offers IP40 protection, and the housing is made of thermoplastic with UL94 V-0 flammability rating.
Electrical characteristics include a dielectric strength greater than 2kVAC between L-N and L/N-PE. The operating temperature range is -25°C to 70°C. It meets the requirements of IEC 60335-1 for appliances in unattended use and is suitable for protection class I equipment. Approvals include CCC, CSA, ENEC, and UL.
| Qty | Low | High |
|---|---|---|
| 1+ | $9.82 | $9.82 |
| 10+ | $8.35 | $8.35 |
| 25+ | $7.83 | $7.83 |
| 50+ | $7.44 | $7.44 |
| 100+ | $7.09 | $7.09 |
| 250+ | $6.64 | $6.64 |
| 1,000+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10A
250VAC
5x20mm fuse, 2-pole
-25°C to 70°C
CCC, CSA, ENEC, UL
Panel mount, flange, screw-on
IP40 front side
