| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Spacing | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Insertion Force per Contact | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Row Spacing | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Withdrawal Force (Per Contact) |

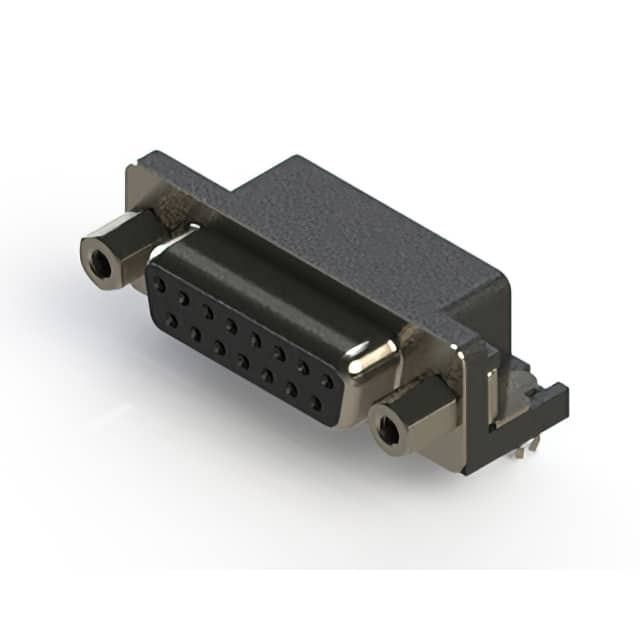

The EDAC 622-015-260-043 is a 15-position D-Sub receptacle (female sockets) from the 622 series. It features a right-angle mounting style for board-edge or through-hole applications, with solder termination. The connector is equipped with a steel nickel-plated shell for EMI/RFI shielding and includes board lock and mounting bracket features.
Electrical specifications include a current rating of 3A per contact, contact resistance of 25 milliohms maximum, and insulation resistance of 5000 megohms minimum. The dielectric withstanding voltage is 1000 VAC at sea level. Operating temperature range is -55°C to +85°C.
The connector has a 0.318" (8.08mm) backset spacing with 0.109" (2.77mm) contact pitch and 0.112" (2.84mm) row spacing. Contact material is copper alloy with gold flash plating over nickel in the mating area and tin plating on the tails. The insulator is thermoplastic polyester rated UL94 V-0.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.35 | $3.35 |
| 10+ | $3.04 | $3.04 |
| 25+ | $2.88 | $2.88 |
| 100+ | $2.68 | $2.68 |
| 250+ | $2.35 | $2.35 |
| 500+ | $2.28 | $2.28 |
| 1,000+ | $1.98 | $1.98 |
| 2,500+ | $1.86 | $1.86 |
| 5,000+ | $1.77 | $1.77 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions (female sockets).
Contact spacing is 0.109" (2.77mm) with row spacing of 0.112" (2.84mm).
3 amperes per contact.
Board edge, through hole, right angle.
-55°C to +85°C (up to +125°C for high temperature variant).
Gold flash (conflicting data: datasheet part decode suggests 30 microinches gold).
Yes, it features board lock and mounting brackets.
