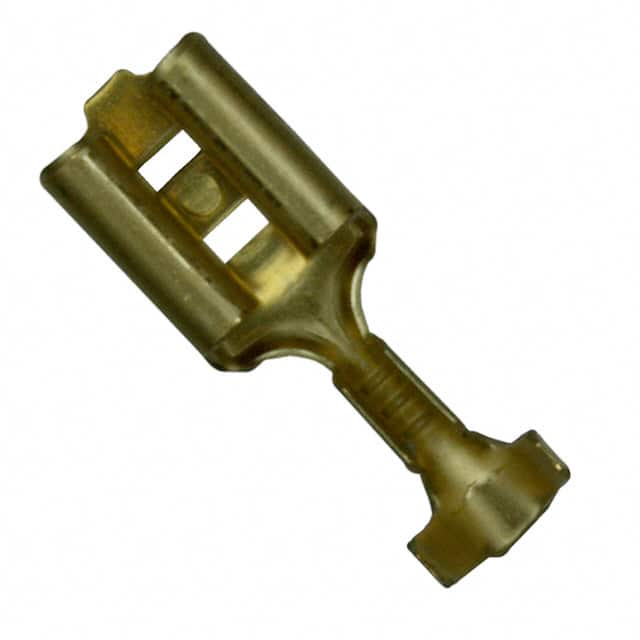

62138-2 This is a female quick disconnect terminal from TE Connectivity. It features a 0.187" tab, accepts 20-24 AWG wire, and uses crimp termination with a non-insulated brass contact.
Mfr Part #:

62138-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
This is a female quick disconnect terminal from TE Connectivity. It features a 0.187" tab, accepts 20-24 AWG wire, and uses crimp termination with a non-insulated brass contact.
✓ Total Stock: 2,800 pcs
$ Price Range: $0.07 - $0.17

62138-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,800 pcs
On Request
2800 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

62138-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Gender
Insulation
Lead Style
Length
Mounting Type
Tab Length
Tab Thickness
Tab Width
Terminal Type
Termination
Wire Gauge
View Similar Products (0)

62138-2 Description

Short technical summary and product information.

The TE Connectivity 62138-2 is a female quick disconnect terminal designed for 0.187" (4.75mm) tab receptacles. It accepts 20-24 AWG wire and uses a crimp termination for a secure connection. The terminal is non-insulated and features a brass contact material for good conductivity.



This terminal is designed for free hanging (in-line) mounting, making it suitable for various wire-to-wire or wire-to-board connections where quick connect and disconnect are required. The tab dimensions are 0.187" width, 0.020" thickness, and 0.250" length, with an overall length of 14.86mm (0.585").



With a female gender, this terminal is compatible with male quick disconnect tabs of corresponding size. The brass construction provides reliable electrical performance in a range of applications. This component is listed as RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.

62138-2 Quick Information

Product Type: Quick Disconnect Terminal
Canonical Name: Female Quick Disconnect Terminal, 0.187" Tab, 20-24 AWG, Crimp, Non-Insulated
Subcategory: Non-Insulated Quick Disconnect

62138-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

62138-2 Estimated Pricing

Qty Low High
1+ $0.17 $0.17
10+ $0.14 $0.14
25+ $0.13 $0.13
50+ $0.13 $0.13
100+ $0.12 $0.12
250+ $0.11 $0.11
500+ $0.11 $0.11
1,000+ $0.10 $0.10
2,500+ $0.10 $0.10
20,000+ $0.08 $0.08
40,000+ $0.08 $0.08
60,000+ $0.08 $0.08
100,000+ $0.07 $0.07

Estimated market price range - modelled values for guidance only, not live distributor offers.

62138-2 Features

  • Female quick disconnect terminal for 0.187" tab.
  • Accepts 20-24 AWG wire with crimp termination.
  • Non-insulated brass contact material.
  • Free hanging in-line mounting style.

62138-2 Applications

  • For quick connect and disconnect wiring applications.
  • For use with 0.187" tab receptacles.

62138-2 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type for this terminal?

Free hanging (in-line) mounting type.

What wire gauge does this terminal accept?

It accepts 20-24 AWG wire.

What are the tab dimensions?

Tab width is 0.187" (4.75mm), thickness is 0.020" (0.51mm), and length is 0.250" (6.35mm).

Is this terminal insulated?

No, it is non-insulated.

What is the contact material?

Brass.

What termination method is used?

Crimp termination.

What is the gender of this terminal?

Female.
