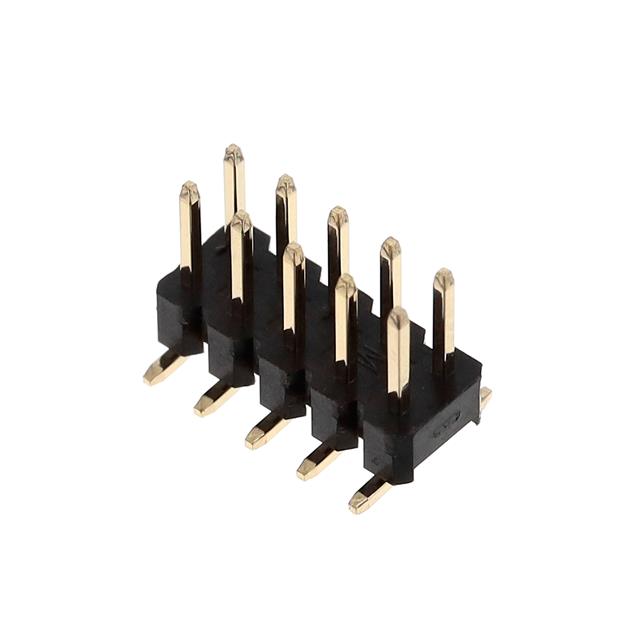

62131021921 The Würth Elektronik 62131021921 is a 10-position, 2-row, 2.00mm pitch surface mount male pin header from the WR-PHD series. It features gold-plated copper alloy contacts and a black PA9T insulator with UL94 V-0 flammability rating.
Mfr Part #:

62131021921

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
The Würth Elektronik 62131021921 is a 10-position, 2-row, 2.00mm pitch surface mount male pin header from the WR-PHD series. It features gold-plated copper alloy contacts and a black PA9T insulator with UL94 V-0 flammability rating.
✓ Total Stock: 196 pcs
$ Price Range: $0.95 - $1.57

62131021921 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
196 pcs
On Request
196 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

62131021921 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating (Amps)
Durability
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
Withstanding Voltage
View Similar Products (0)

62131021921 Description

Short technical summary and product information.

This is a 10-position, 2-row, 2.00mm pitch surface mount male pin header from Würth Elektronik's WR-PHD series. It is designed for board-to-board applications and features an unshrouded, push-pull fastening design.



Key specifications include a current rating of 2A, voltage rating of 200VAC, withstanding voltage of 500VAC, contact resistance of 20mΩ max, and insulation resistance of 1000MΩ min. Operating temperature range is -40°C to 105°C.



The header uses gold-plated copper alloy square pins with a contact length of 4.00mm. The insulator is made of black PA9T (Nylon 9T) with UL94 V-0 flammability rating. It is surface mount with solder termination and includes a pick-and-place feature for automated assembly.



Packaging is tape and reel (inferred from pick-and-place feature). The part is RoHS and REACH compliant. Durability is rated for 50 mating cycles.

62131021921 Quick Information

Product Type: Header, Male Pins
Series: WR-PHD
Canonical Name: WR-PHD 2.00mm SMT Straight Dual Pin Header, 10 Positions, 2 Rows
Subcategory: Male Pins

62131021921 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Compliant
Lead Free: Yes

62131021921 Estimated Pricing

Qty Low High
1+ $1.57 $1.57
10+ $1.48 $1.48
50+ $1.32 $1.32
100+ $1.16 $1.16
550+ $1.03 $1.03
1,100+ $0.95 $0.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

62131021921 Features

  • 10 positions in 2 rows at 2.00mm pitch.
  • Surface mount with gold-plated contacts.
  • Rated for 2A current and 200VAC.
  • UL94 V-0 rated PA9T insulator.
  • Pick-and-place compatible for automated assembly.

62131021921 Applications

  • Board-to-board interconnections in compact designs.
  • Automated assembly with pick-and-place equipment.
  • General purpose signal and power connections.
  • Industrial and consumer electronics applications.

62131021921 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 62131021921 have?

10 positions in 2 rows.

What is the pitch of this header?

2.00mm.

What is the current rating?

2A.

What is the voltage rating?

200VAC.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-40°C to 105°C.

What is the durability rating?

50 mating cycles.
