| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
242 pcs
|
242 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Length | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

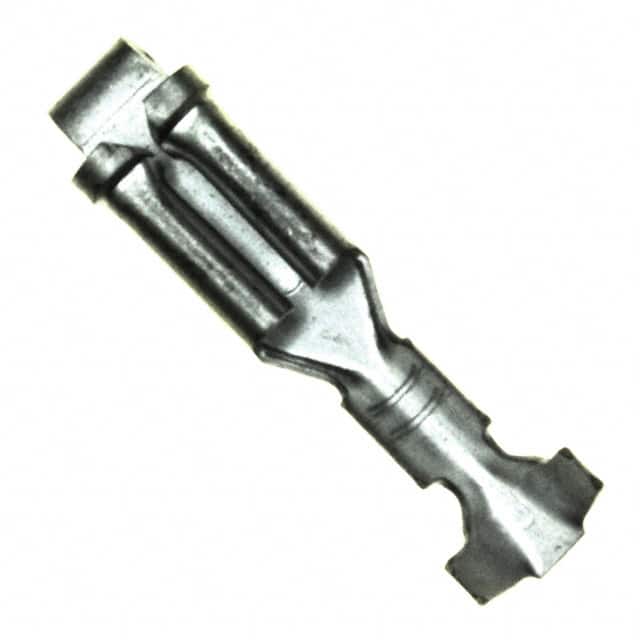

The TE Connectivity 62112-2 is a FASTON uninsulated quick connect terminal designed for reliable wire-to-tab connections in a variety of electrical applications. This terminal combines a female receptacle and male tab in a single stacked configuration, allowing for versatile wiring schemes.
Key specifications include a tab width of 0.110" (2.79mm), tab thickness of 0.020" (0.51mm), and tab length of 0.250" (6.35mm). It accepts 18-22 AWG wire and uses a crimp termination method for secure attachment. The contact is made of brass with a tin finish, ensuring good conductivity and corrosion resistance.
The terminal is non-insulated and designed for free hanging (in-line) mounting. It has an overall length of 15.24mm (0.600"). As part of the FASTON family, it is compatible with standard TE Connectivity hand tools for application.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.37 | $0.37 |
| 10+ | $0.34 | $0.34 |
| 25+ | $0.32 | $0.32 |
| 100+ | $0.31 | $0.31 |
| 250+ | $0.29 | $0.29 |
| 1,000+ | $0.28 | $0.28 |
| 3,000+ | $0.27 | $0.27 |
| 5,000+ | $0.27 | $0.27 |
| 10,000+ | $0.27 | $0.27 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 62112-2 accepts 18-22 AWG wire.
The tab width is 0.110" (2.79mm).
No, the 62112-2 is a non-insulated terminal.
The 62112-2 uses crimp termination.
The contact is made of brass with a tin finish.
