| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 3 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Durability | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Length | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

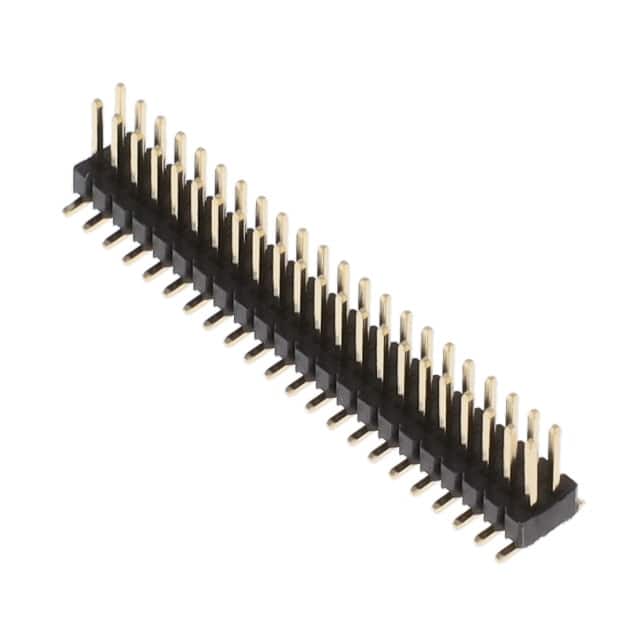

The Würth Elektronik 62104421021 is a WR-PHD series surface-mount straight dual pin header designed for board-to-board applications. It features 44 positions arranged in 2 rows with a 1.27mm pitch and 1.27mm row spacing. The male square pins are made of copper alloy with a gold finish, providing reliable electrical contact.
This unshrouded header has a black PA9T insulator rated UL94 V-0 for flammability. It is rated for 1A current and 100VAC, with a contact resistance of 20 mOhm max and insulation resistance of 500 MOhm min. The operating temperature range is -40°C to +105°C, and the connector is rated for 50 mating cycles.
The header is surface-mount solder terminated with a push-pull fastening type. Overall length is 27.94mm, and the insulator height is 1.50mm. It is RoHS and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $8.07 | $8.07 |
| 10+ | $7.65 | $7.65 |
| 60+ | $6.81 | $6.81 |
| 100+ | $5.98 | $5.98 |
| 500+ | $5.56 | $5.56 |
| 1,000+ | $5.14 | $5.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
It has 44 positions, all loaded, in 2 rows.
The current rating is 1A.
The voltage rating is 100VAC.
Surface mount (SMT) with solder termination.
-40°C to +105°C.
Yes, it is RoHS compliant per 2011/65/EU & 2015/863.
