| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,293 pcs
|
1293 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Durability | |
| Fastening Type | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating | |
| Withstanding Voltage |

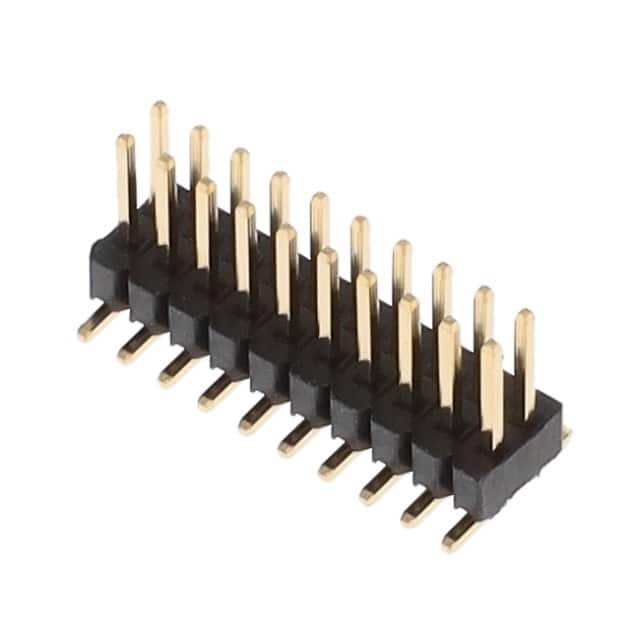

The Würth Elektronik 62102021021 is a WR-PHD series surface mount dual pin header designed for board-to-board applications. It features 20 positions arranged in 2 rows with a 1.27 mm pitch and an 11.43 mm row spacing. The header has a total length of 12.7 mm and an insulation height of 1.5 mm.
The male pin contacts are made of copper alloy with a gold finish, ensuring reliable electrical performance. The black insulator is molded from PA9T material with a UL94 V-0 flammability rating. This unshrouded header uses a push-pull fastening type and is rated for 50 mating cycles.
Electrically, the header is rated for 1 A current and 100 VAC voltage, with a withstanding voltage of 300 VAC. Contact resistance is 20 mΩ maximum, and insulation resistance is 500 MΩ minimum. The operating temperature range is -40°C to +105°C.
The component is surface mount with SMT straight lead style and solder termination. It is RoHS and REACH compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.40 | $3.40 |
| 10+ | $3.23 | $3.23 |
| 45+ | $2.87 | $2.87 |
| 90+ | $2.52 | $2.52 |
| 540+ | $2.35 | $2.35 |
| 1,035+ | $2.17 | $2.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27 mm.
It has 20 positions arranged in 2 rows.
The current rating is 1 A.
The voltage rating is 100 VAC.
It is a surface mount (SMT) component with straight leads.
The operating temperature range is -40°C to +105°C.
Yes, it is RoHS compliant.
