| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,909 pcs
|
2909 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Contact Spacing | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Insertion Force | |
| Insulation Resistance | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature | |
| Row Spacing | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Withdrawal Force |

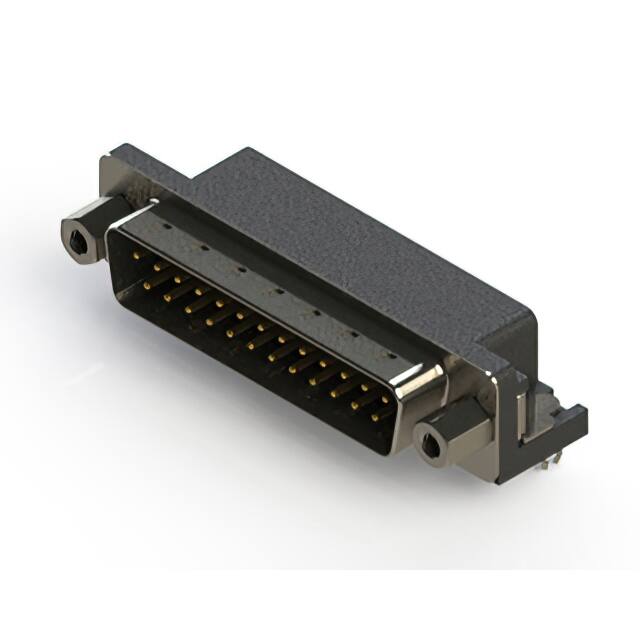

The Edac 621-025-260-043 is a 25-position D-Sub plug connector from the 621 series. It features male pins with selective gold flash plating over nickel in the mating area and tin plating on the tail for solderability. The connector uses a right angle, board edge through-hole mounting style with a 0.318" (8.08mm) footprint and two contact rows spaced at 0.112" (2.84mm).
Electrical specifications include a current rating of 3A per contact, maximum contact resistance of 25 milliohms, and dielectric withstanding voltage of 1000 V AC rms at sea level. The insulator is made of thermoplastic polyester rated UL94 V-0, and the steel shell is nickel plated for EMI/RFI shielding. Features include board locks, grounding indents, mounting brackets, and a shielded design.
The operating temperature range is -55°C to +85°C. The connector is designed to meet MIL-C-24038, EIA RS-232, and RS-449 requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.80 | $3.80 |
| 10+ | $3.46 | $3.46 |
| 25+ | $3.27 | $3.27 |
| 100+ | $3.04 | $3.04 |
| 250+ | $2.66 | $2.66 |
| 500+ | $2.59 | $2.59 |
| 1,000+ | $2.21 | $2.21 |
| 2,500+ | $2.05 | $2.05 |
| 5,000+ | $1.98 | $1.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
25 positions arranged in 2 rows.
3A per contact.
Board edge, through hole, right angle with solder termination.
-55°C to +85°C.
Gold flash plating (selective gold over nickel in mating area, tin on tail).
