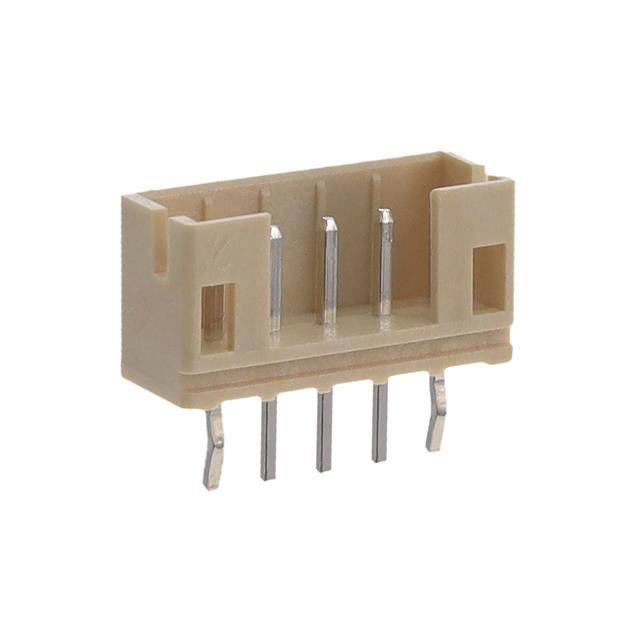

62000511622 Würth Elektronik 62000511622 is a 5-position, single-row, 2.00mm pitch shrouded header for board-to-cable/wire connections. It features through-hole mounting with kinked pin solder termination and tin-plated contacts.
Mfr Part #:

62000511622

Available from 1 distributors
Mfr Name: Würth Elektronik
Würth Elektronik
Würth Elektronik 62000511622 is a 5-position, single-row, 2.00mm pitch shrouded header for board-to-cable/wire connections. It features through-hole mounting with kinked pin solder termination and tin-plated contacts.
✓ Total Stock: 55 pcs
$ Price Range: $0.21 - $0.25

62000511622 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
55 pcs
On Request
55 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

62000511622 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Connector Type
Contact Finish
Contact Length
Contact Material
Contact Resistance
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Durability
Fastening Type
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Style
Length
Material Flammability Rating
Military Grade
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Operating Temperature Range
Overall Contact Length
Pitch
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
Withstanding Voltage
View Similar Products (0)

62000511622 Description

Short technical summary and product information.

The Würth Elektronik 62000511622 is a male vertical shrouded header from the WR-WTB series, designed for wire-to-board connections. It has 5 positions in a single row with a 2.00mm pitch, making it suitable for compact applications. The header is fully shrouded with four walls for protection and features a push-pull fastening mechanism. It is rated for 2A current and 125VAC voltage, with a durable design rated for 25 mating cycles. The insulator is made of LCP (Liquid Crystal Polymer) with a white color and UL94 V-0 flammability rating. Contacts are copper alloy with tin plating, and the termination style is kinked pin solder for reliable through-hole mounting. The operating temperature range is -25°C to 85°C. This component is RoHS and REACH compliant, and is packaged in a bag.

62000511622 Quick Information

Product Type: Shrouded Header
Series: WR-WTB
Canonical Name: Würth Elektronik WR-WTB 62000511622 Male Vertical Shrouded Header, 5 Positions, 2.00mm Pitch, Through Hole, Tin Plating
Subcategory: Board-to-Cable/Wire Headers

62000511622 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Conform

62000511622 Estimated Pricing

Qty Low High
1+ $0.25 $0.25
50+ $0.24 $0.24
100+ $0.23 $0.23
250+ $0.22 $0.22
500+ $0.21 $0.21

Estimated market price range - modelled values for guidance only, not live distributor offers.

62000511622 Features

  • 5 positions with 2.00mm pitch spacing.
  • Through-hole mounting with kinked pin solder.
  • Rated for 2A current and 125VAC voltage.
  • Shrouded 4-wall design for connector protection.
  • Tin-plated copper alloy contacts for reliable conductivity.

62000511622 Applications

  • Ideal for wire-to-board connections in compact devices.
  • Used in power supply and signal interfaces.
  • Suitable for industrial control and automation equipment.

62000511622 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

5 positions.

What is the pitch of this header?

2.00 mm.

What is the current rating?

2 A.

What is the voltage rating?

125 VAC.

What is the mounting type?

Through hole.

What is the contact material?

Copper alloy with tin plating.

What is the operating temperature range?

-25°C to 85°C.
