| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength (Minimum) | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Fuse Type | |
| Housing Material | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature Range | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Protection Class | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

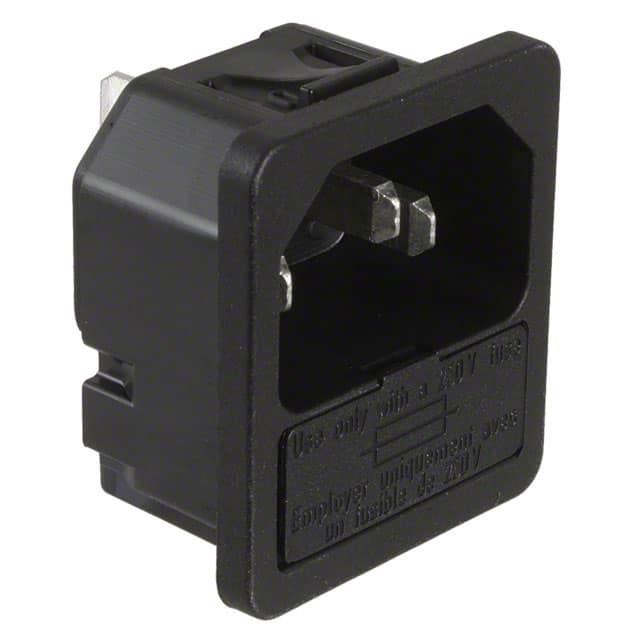

The Schurter 6200.4320 is a panel mount IEC 320-C14 power entry module with an integrated 1-pole fuseholder for 5x20mm fuses. It is rated for 10A at 250VAC (IEC and UL/CSA) and features an unfiltered commercial grade design. The module snaps into a rectangular panel cutout of 27.50mm x 31.50mm and accepts panel thicknesses from 1mm to 3mm. It provides quick connect (0.250") and solder terminals for easy wiring. The housing is made of black thermoplastic with UL94 V-0 flammability rating. The front side offers IP40 protection. It meets protection class I requirements and is approved by CCC, CSA, ENEC, and UL. The fuseholder is Shocksafe PC2 per IEC 60127-6 and requires plug removal for fuse replacement. Suitable for use in equipment per IEC/UL 62368-1 and IEC 60335-1 for unattended appliances.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.72 | $4.72 |
| 10+ | $4.02 | $4.02 |
| 25+ | $3.77 | $3.77 |
| 50+ | $3.58 | $3.58 |
| 100+ | $3.40 | $3.40 |
| 250+ | $3.19 | $3.19 |
| 500+ | $3.04 | $3.04 |
| 1,000+ | $2.88 | $2.88 |
| 2,500+ | $2.75 | $2.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 positions (Line, Neutral, Ground).
10 A at 250 VAC (IEC and UL/CSA).
250 VAC.
Panel mount, snap-in. Requires rectangular cutout 27.50mm x 31.50mm and panel thickness 1-3mm.
No, it accommodates a 5x20mm fuse (not included) in a 1-pole Shocksafe PC2 fuseholder.
-25°C to 70°C.
IP40 on the front side per IEC 60529.
