| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
63 pcs
|
63 pcs | On Request | 10 | On Request | On Request | On Request | On Request | On Request | |
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accommodates a Fuse | |
| Accomodates a Fuse | |
| Allowable Operation Temperature | |
| Approval Agency | |
| Connector Style | |
| Connector Type | |
| Current Rating | |
| Dielectric Strength | |
| Filter Type | |
| Fuse Holder, Drawer | |
| Ingress Protection | |
| Material Flammability Rating | |
| Medical Grade | |
| Mounting Screw Torque | |
| Mounting Type | |
| Number of Positions | |
| Panel Cutout Dimensions | |
| Panel Thickness | |
| Protection Class | |
| Rated Power Acceptance (1 pole) | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating | |
| panel_thickness (Maximum) |

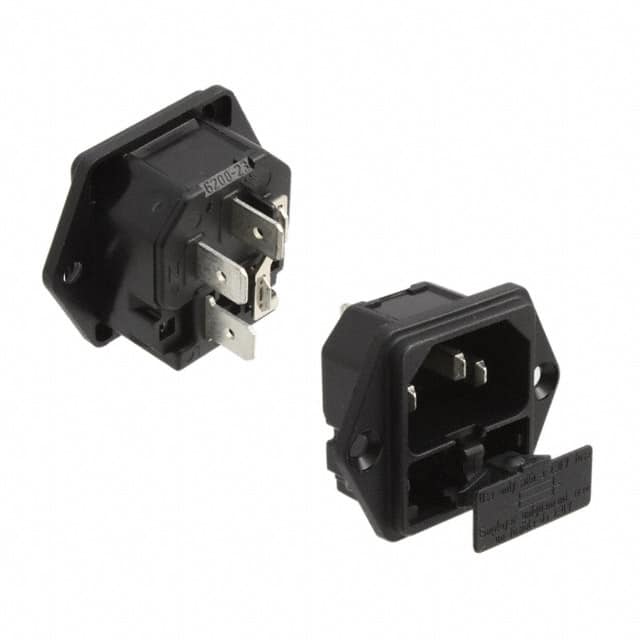

The Schurter 6200.2300 is a panel-mount IEC 320-C14 power entry module designed for protection class I equipment. It features a 1-pole fuseholder accommodating 5x20mm fuses (fuse not included) and is rated for 10A at 250VAC (IEC) and 10A at 250VAC (UL/CSA). The module is unfiltered, making it suitable for applications where line filtering is handled separately.
Electrical characteristics include a dielectric strength greater than 2 kVAC between L-N and between L/N-PE. The operating temperature range is -25°C to 70°C. The housing is made of thermoplastic with UL94 V-0 flammability rating, and the front side offers IP40 ingress protection.
Mechanical mounting is via screw-on (panel thickness up to 6mm, screw torque max 0.5 Nm) or snap-in (panel thickness 1/1.5/2/2.5/3mm). Termination is quick connect 0.250" (6.3mm). The module includes a V-Lock notch standard and meets IEC 60335-1 requirements for unattended use.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.51 | $4.51 |
| 10+ | $3.59 | $3.59 |
| 50+ | $3.41 | $3.41 |
| 100+ | $3.25 | $3.25 |
| 250+ | $3.04 | $3.04 |
| 500+ | $2.90 | $2.90 |
| 1,000+ | $2.76 | $2.76 |
| 2,500+ | $2.75 | $2.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 A at 250 VAC (IEC) and 10 A at 250 VAC (UL/CSA).
250 VAC.
Panel mount with screw-on (max panel thickness 6 mm) or snap-in (panel thickness 1/1.5/2/2.5/3 mm).
No, the fuse is not included. The module accommodates a 5x20 mm fuse in a 1-pole fuseholder.
-25 °C to 70 °C.
IP40 on the front side.
CCC, CSA, ENEC, UL.
