| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
728 pcs
|
728 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
728 pcs
|
728 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Overall Contact Length | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

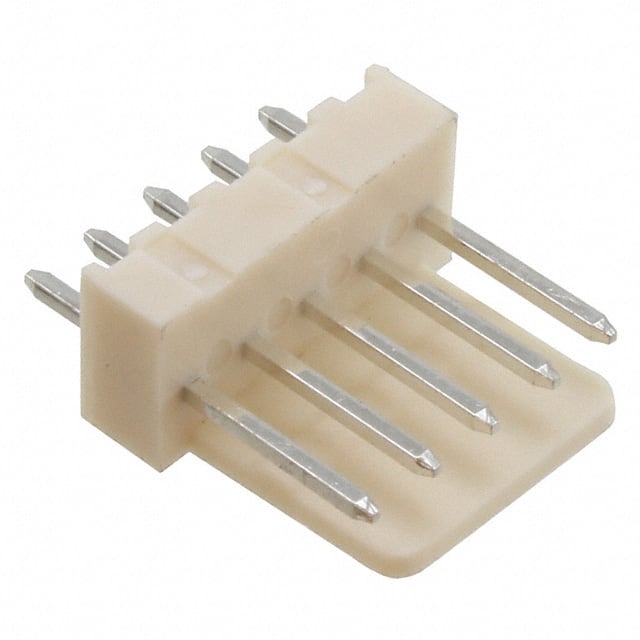

The Würth Elektronik 61900511121 is a 5-position, single row, 2.54mm pitch shrouded header designed for board-to-cable/wire connections. It features male pin contacts made of copper alloy with a tin finish, housed in a beige polyamide (PA66/Nylon 6/6) insulator rated UL94 V-0. The header includes a friction lock fastening system for secure mating and a 1-wall shroud for pin protection.
Electrical ratings include a current rating of 3A, a voltage rating of 250V AC, contact resistance of 20 mOhm max, and dielectric withstanding voltage of 1000V AC. The operating temperature range is -40°C to 105°C. The component is through hole mounted and terminated via solder.
This header is suitable for a variety of wire-to-board interconnect applications where a reliable, polarized connection is required. The 2.54mm pitch is a common industry standard, facilitating compatibility with many mating connectors. The part is packaged in a bag and is RoHS and lead-free compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.22 | $1.22 |
| 10+ | $1.05 | $1.05 |
| 50+ | $0.96 | $0.96 |
| 100+ | $0.78 | $0.78 |
| 500+ | $0.71 | $0.71 |
| 1,000+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm.
The current rating is 3A.
The voltage rating is 250V AC.
It uses through hole mounting.
It has 5 positions.
The operating temperature range is -40°C to 105°C.
Yes, it is RoHS compliant and lead-free.
