| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

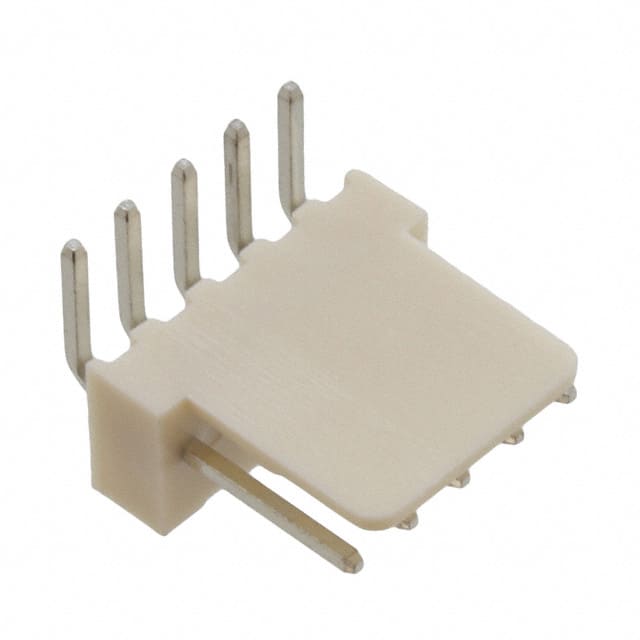

The Würth Elektronik 61900511021 is a 5-position, single row, right angle shrouded header with a 2.54mm pitch. It features male pin contacts made of copper alloy with a tin finish, housed in a beige polyamide (PA66/Nylon 6/6) insulator rated UL94 V-0. The connector includes a friction lock for secure mating and is designed for board-to-cable/wire applications.
Electrical ratings include a current rating of 3A, a voltage rating of 250VAC, insulation resistance greater than 1000 MOhm, dielectric withstanding voltage of 1000 VAC, and a maximum contact resistance of 20 mOhm. The operating temperature range is -40°C to 105°C. The connector is rated for 25 mating cycles.
The header is through-hole mounted with a right angle orientation and uses solder termination. It is packaged in a bag and is compatible with JEDEC lead-free wave soldering processes. The part is RoHS compliant and lead-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.21 | $1.21 |
| 10+ | $1.05 | $1.05 |
| 50+ | $0.96 | $0.96 |
| 100+ | $0.78 | $0.78 |
| 500+ | $0.71 | $0.71 |
| 1,000+ | $0.65 | $0.65 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.54mm.
It has 5 positions in a single row.
The current rating is 3A.
The voltage rating is 250V.
It is a through-hole, right angle mount.
The operating temperature range is -40°C to 105°C.
Yes, the datasheet states it is RoHS compliant and lead-free.
